TA_P Mini split - core transformers

The mini transformer TA__P open core transformer for measuring instrumentation. It is a transformer for through primary, for cables of different dimensions. Its casing is made of plastic and its main advantage is the ease of installation due to the possibility of opening the core, which is closed with a clip. The mini transformer also has the secondary cable included for easier installation.

Description: The mini transformer TA__P open core transformer for measuring instrumentation. It is a transformer for through primary, for cables of different dimensions. Its casing is made of plastic and its main advantage is the ease of installation due to the possibility of opening the core, which is closed with a clip. The mini transformer also has the secondary cable included for easier installation.

Model/ Cable
TA10P  Ø10
TA16PA  Ø16
TA20PAØ20
TA24P Ø24
TA36P Ø36
TA50P Ø50


    BASIC DATA PROTECTION INFORMATION: Data controller: SOCIEDAD ANÓNIMA DE CONSTRUCCIONES INDUSTRIALES Purpose of processing: To manage the queries made and to send newsletters, commercial communications and promotions. Legitimisation of the processing: Legitimate interest and consent of the data subject. Retention of data: Data will be kept for as long as there is a mutual interest or for the time necessary to comply with legal obligations. Recipients: Service providers or collaborators. Rights: Right to withdraw consent at any time. Right of access, rectification, portability and deletion of your data and the right to limit or oppose its processing. Contact details for exercising your rights: info@saci.es Additional information: You can consult additional information in our Privacy Policy.

    Technical specifications
    Certificate
    Technical specifications
    Certificate

    Technical details

    • 3D Files

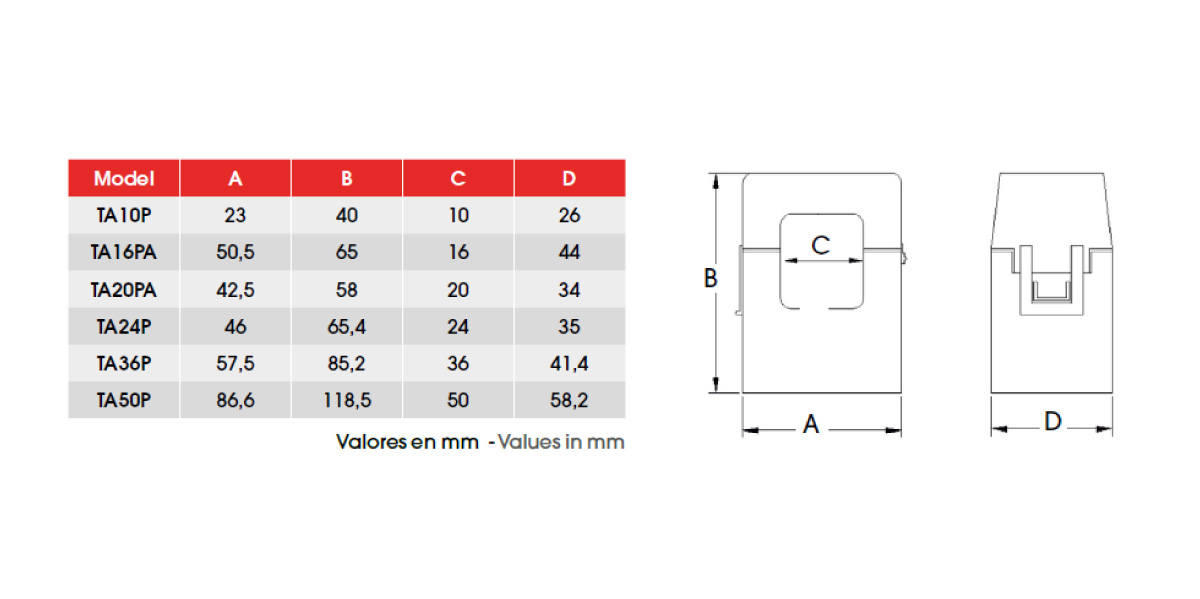

    • Dimensions
    • Technical characteristics
    • Technical data
    • Standards

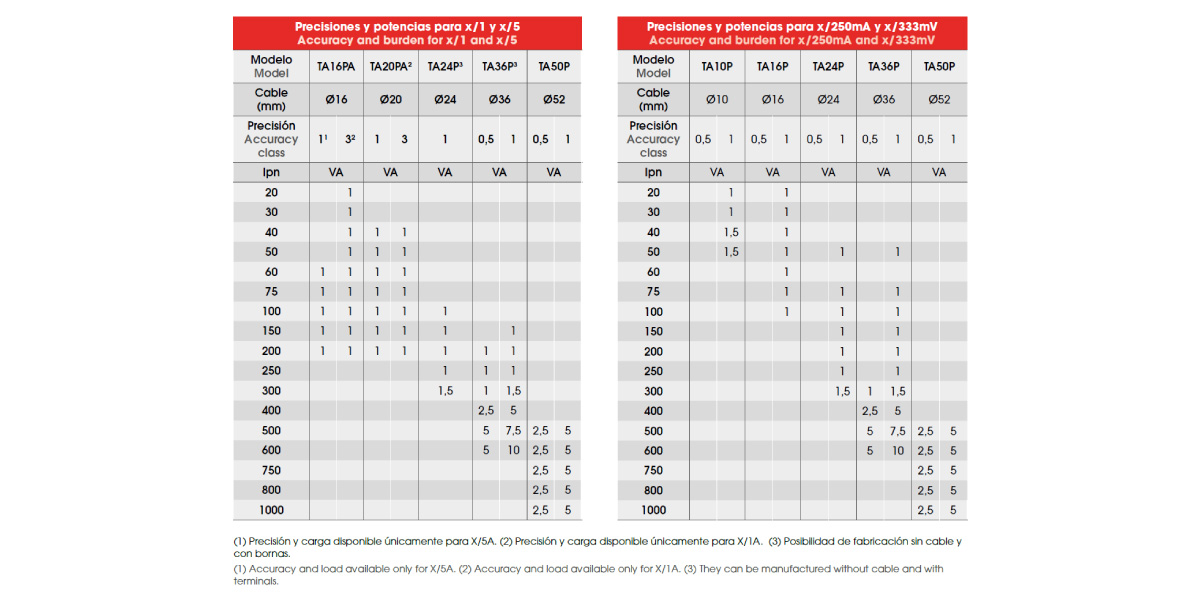

    • Ratios

    3D files in .STEP format for easy integration into electrical projects and designs.

    Model/ Cable
    TA10P  Ø10
    TA16PA  Ø16
    TA20PAØ20
    TA24P Ø24
    TA36P Ø36
    TA50P Ø50

    • Window-type
    • Open core
    • For cable
    • Plastic enclosure
    • Easy installation due to the possibility to open the core
    • Secondary cable included for ease of installation

    General technical data

    • Factor of safety: Fs < 5
    • Nominal thermal short-circuit intensity: 60 x In or Ith limited by the dimensions of the cable or the primary bar
    • Rated dynamic current: IDyn = 2,5 x Ith
    • Continued overload: ID = 1.2 x Icth
    • Operating voltage (maximum): 720 VAC
    • Test voltage: 3 kV, 1 min.
    • Frequency: 50 - 60 Hz
    • Operating temperature: -10 … +55 ºC
    • Accuracy: 0.5 - 1 - 3
    • Secondary nominal current: x/5A, x/1A, x/250mA, x/333mV
    • Insulation class: Class E / Class B (130 ºC) available
    • Cable length: 1 meter
    • IEC 60185
    • UNE EN 618691 (IEC 618691)
    • UNE EN 618692 (IEC 618692)
    • VDE 0414
    • IEC60801-3.4
    • DIN 57414
    • BS 3938
    • EN 50081
    • EN 50082
    • IEC61010
    • UL94-V0
