TA_P Split - core transformers

The current transformer TA_P is an open core transformer for measuring instrumentation. It is a transformer for through primary, for cable or plate of different dimensions. Its casing is made of plastic and its main advantage is the ease of installation due to the possibility of opening the core.

Description: The current transformer TA_P is an open core transformer for measuring instrumentation. It is a transformer for through primary, for cable or plate of different dimensions. Its casing is made of plastic and its main advantage is the ease of installation due to the possibility of opening the core.

TA30P / 30×20 / Ø20
TA60P / 60×30 / Ø30
TA80P / 80×50 / Ø50
TA100P / 100×80 / Ø80
TA125P / 125×80 / Ø80
TA160P / 160×80 / Ø80

TA40P / 40×40 / Ø40

TA85P / 85×85 / Ø85

TA135P / 135×135 / Ø135

I have read and accept the privacy policy
I agree to receive personalised commercial communications from saci.es

BASIC DATA PROTECTION INFORMATION: Data controller: SOCIEDAD ANÓNIMA DE CONSTRUCCIONES INDUSTRIALES Purpose of processing: To manage the queries made and to send newsletters, commercial communications and promotions. Legitimisation of the processing: Legitimate interest and consent of the data subject. Retention of data: Data will be kept for as long as there is a mutual interest or for the time necessary to comply with legal obligations. Recipients: Service providers or collaborators. Rights: Right to withdraw consent at any time. Right of access, rectification, portability and deletion of your data and the right to limit or oppose its processing. Contact details for exercising your rights: info@saci.es Additional information: You can consult additional information in our Privacy Policy.

Technical specifications

Certificate

Technical specifications

Certificate

Technical details

3D Files

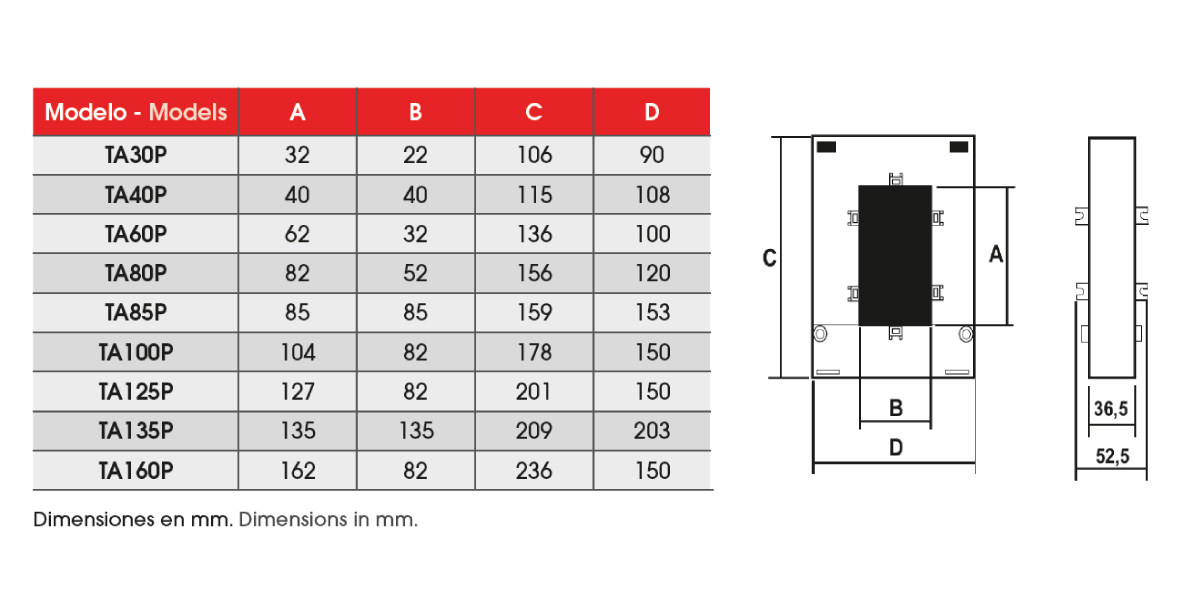

Dimensions
Technical characteristics
Technical data
Standards

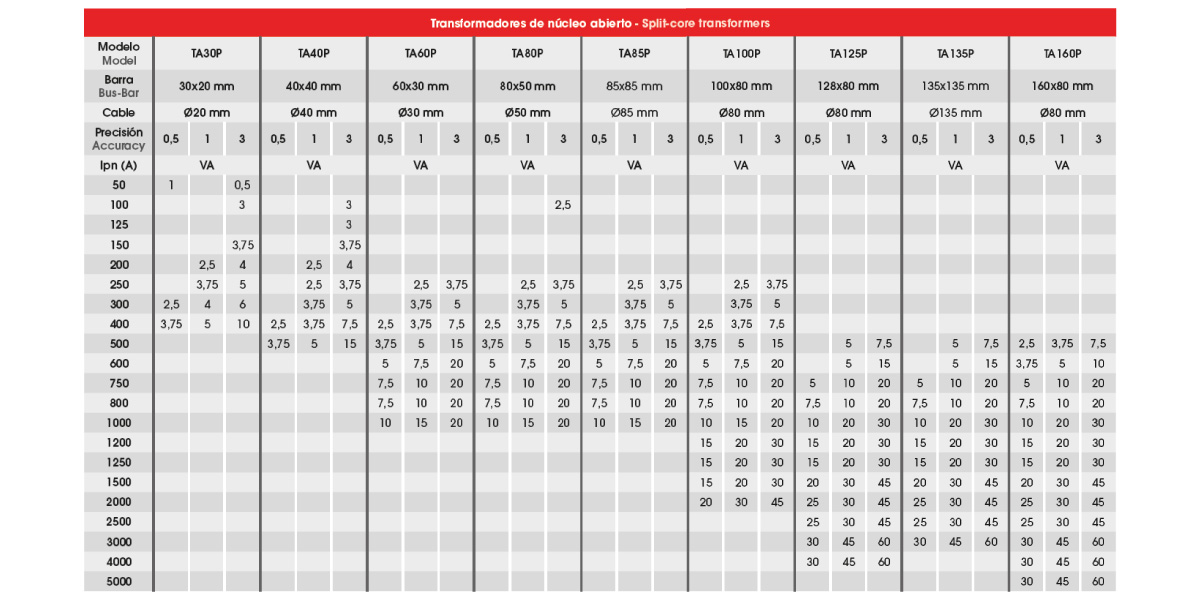

Ratios

3D files in .STEP format for easy integration into electrical projects and designs.

TA30P
TA40P
TA60P
TA80P
TA100P
TA125P
TA160P

Model/ Bus-Bar/ Cable

TA30P / 30×20 / Ø20
TA40P / 40×40 / Ø40
TA60P / 60×30 / Ø30
TA80P / 80×50 / Ø50
TA85P / 85×85 / Ø85
TA100P / 100×80 / Ø80
TA125P / 125×80 / Ø80
TA135P / 135×135 / Ø135
TA160P / 160×80 / Ø80

Window-type
Open core
For cable or busbar
Plastic enclosure
Easy installation due to the possibility to open the core

General technical data

Factor of safety: Fs < 5
Operating voltage (maximum): 720 V
Test voltage: 3 kV AC (1min)
Frequency: 50-60 hz
Rated thermal short-circuit current: Ith limited by cable or primary busbar dimensions
Rated dynamic current: IDyn = 2,5 x Ith
Continuous overload: ID = 1.2 x IN
Operating temperature: -10 ... 50 ºC
Accuracy: 0.5 - 1 - 3 (0.2s; 0.2 and 0.5s on request)
Nominal secondary current: /5 or /1A
Insulation class: Class E // Class B (130 ºC) available
