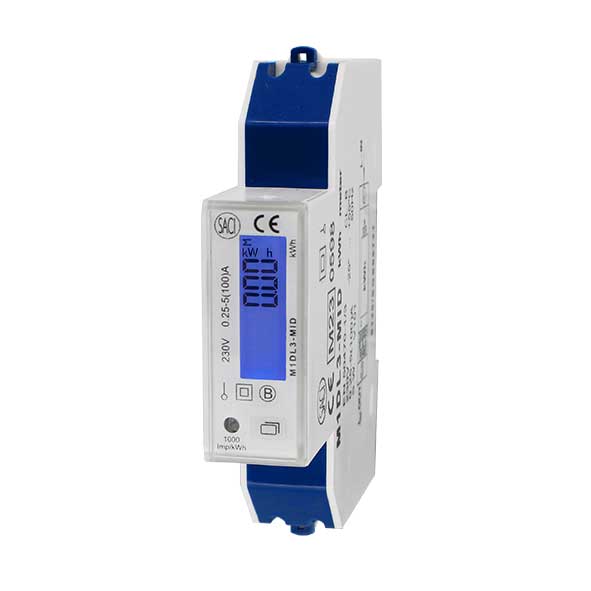

M1DL3-MID Energy meter

The M1DL3-MID is a single-phase meter with MID certification and RS485 Modbus RTU communication, designed for energy measurement and monitoring of electrical installations. It measures active imported and exported energy (EP+, EP-), reactive energy in 4 quadrants, and various electrical parameters of single-phase systems, facilitating energy control and integration into supervisory systems.

In addition to being a meter, it acts as a network analyser, allowing data to be visualised on a display or transmitted via Modbus RTU. It complies with EN 50470-1/3 standards, has class B for active energy and class 2 for reactive energy, and incorporates time-of-use discrimination for up to 4 tariffs, making it a suitable solution for industrial, tertiary, and electric vehicle charging point installations.

The M1DL3-MID meter is a single-phase meter with RS 485 communication. This device is also an analyser, measuring up to 10 parameters of a single-phase system such as imported and exported active energy (EP+, EP-). The measured values can be viewed on the display or transmitted via the RS 485 port with Modbus RTU protocol.

Its working temperature, according to the MID directive, is from -25 to +70ºC, temperatures recommended for the installation of electric vehicle charging systems.

Complies with EN 50470-1/3 with accuracy class B for active energy and class 2 for reactive energy.

It is intended for DIN rail mounting and indoor use. It is designed and manufactured for M1 mechanical and E2 electromagnetic environments in accordance with directive 2014/32/EU.


    BASIC DATA PROTECTION INFORMATION: Data controller: SOCIEDAD ANÓNIMA DE CONSTRUCCIONES INDUSTRIALES Purpose of processing: To manage the queries made and to send newsletters, commercial communications and promotions. Legitimisation of the processing: Legitimate interest and consent of the data subject. Retention of data: Data will be kept for as long as there is a mutual interest or for the time necessary to comply with legal obligations. Recipients: Service providers or collaborators. Rights: Right to withdraw consent at any time. Right of access, rectification, portability and deletion of your data and the right to limit or oppose its processing. Contact details for exercising your rights: info@saci.es Additional information: You can consult additional information in our Privacy Policy.

    Technical specifications
    Manual
    CE-certifiedSGS Certificate
    Software
    Technical specifications
    Manual
    CE CertificateSGS Certificate
    Software

    Technical details

    • Connections
    • Dimensions
    • Technical characteristics
    • Technical data
    • DIN rail mounting
    • LCD display
    • 5 digits + 2 decimals
    • 1000 imp/kWh verification LEDs
    • RS 485 communication port
    • Modbus RTU protocol
    • With screw

    Standards

    • EN 50470-1
    • EN 50470-3
    • EN 62053-23
    • DIN 43864
    • EN 61010

    ENTRANCE

    • Rated voltage: 230 V AC
    • Voltage measuring range: 230 V ± 20%
    • Nominal current: 0.25 - 5 (100) A
    • Current measuring range: 0 - 100 % IMAX
    • Starting current: 20 mA
    • Frequency: 50 Hz or 60Hz
    • Network type: 1P2W
    • Own consumption: < 10 VA, < 1 W

    ENVIRONMENT

    • Degree of protection: IP51
    • Electromagnetic environment: E2
    • Mechanical environment: M1
    • Average relative humidity: ≤ 75 %
    • Maximum relative humidity: ≤ 95 % (Non-condensing)
    • Operating temperature: - 25 / + 70 ºC
    • Storage temperature: - 25 / + 70 ºC

    OTHER CHARACTERISTICS

    • Auxiliary voltage: Self-powered
    • Baud rate: 9600 / 11115 bps
    • Housing material: PBT, PC
