Voltage transformer TE108

What is the difference between voltage transformers and current transformers?

While voltage transformers are capable of changing the voltage, voltage transformers are capable of changing the voltage. current transformers allow the amount of energy, i.e. the current, to be changed while maintaining its power and voltage. However, both serve to protect the equipment and the people who handle it, as well as to ensure that the currents can be read by measuring equipment.

Current transformers are also known as current transformers and in our catalogue you can see the wide range we have.

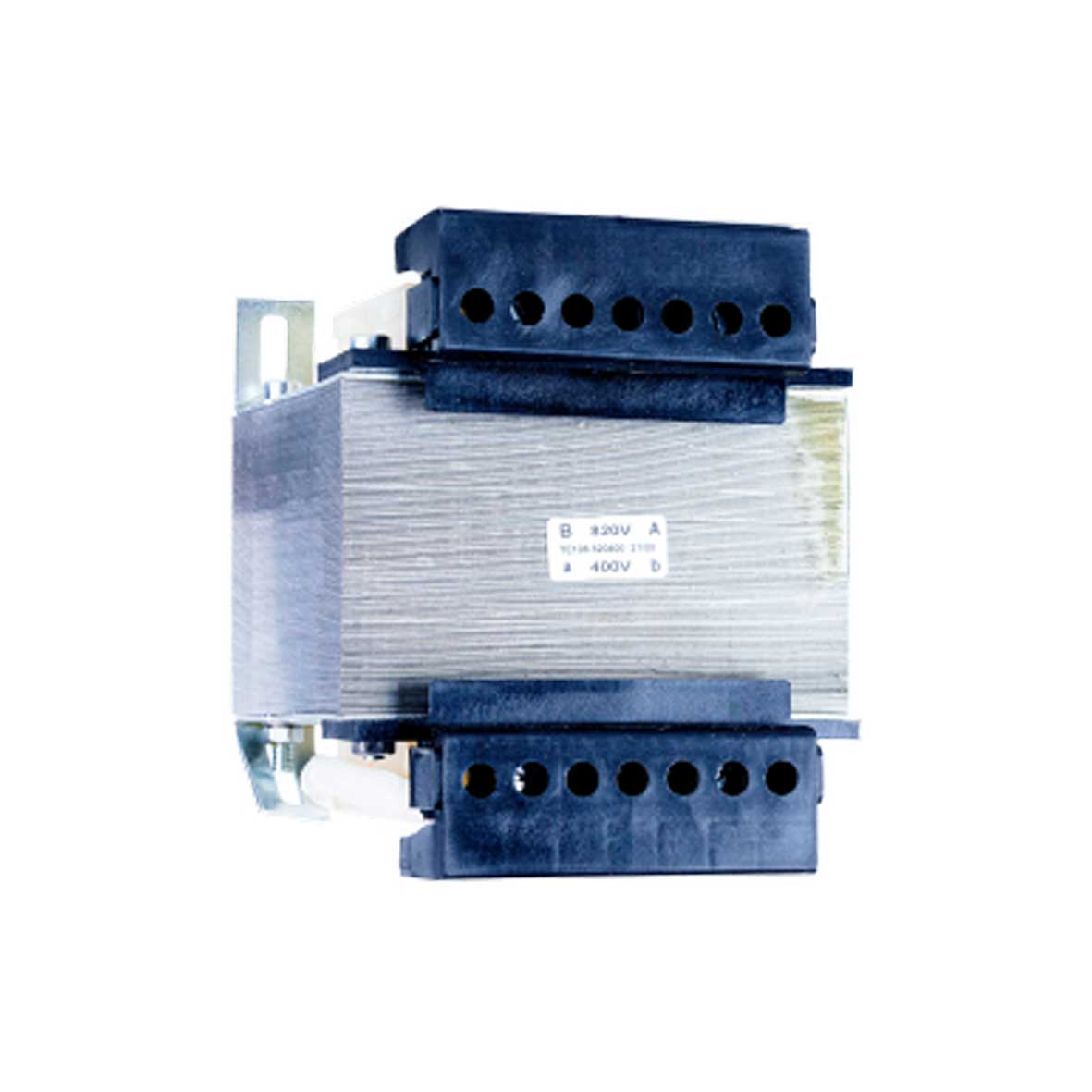

SACI TE108 Voltage Transformer Characteristics

SACI's robust TE108 voltage transformer allows safe operation in environments where there can be a power difference of up to 6000 volts. This makes it perfect for the industrial sector and the electricity distribution sector, where high voltages are handled.

Because it has an accuracy of 0.5, it can very accurate measurement of stress, This is very important in industrial environments and in substations where very precise voltage control is required.

In addition, the SACI transformer is particularly versatile as it can work with a wide range of input voltages, in particular it has a primary voltage of up to 1,000 volts.

In summary, the transformer has a high precision, a high versatility, and a remarkable robustness and efficiency compared to other transformers on the market. It is perfect for environments where absolute and precise voltage control is required.

SACI TE108 Voltage Transformer Applications

• In the tertiary sector, the processor decreases the voltage The high voltage power supply it receives in order to distribute the power appropriately.
• In industry, voltage transformers adapt the voltage to the specific needs of the machinery being used. In addition, it is sometimes necessary to electrically insulate The voltage transformers such as this one are also used for this purpose.

Benefits of using a voltage transformer

• Performance optimisation: by being able to adjust the voltage to the needs of each piece of equipment, they optimise its operation.
• Damage prevention: for the same reason as above, as the equipment is not receiving more voltage than it needs, the possibility of damage is greatly reduced.
• Improved security: by installing voltage transformers, the risk of electric shock from devices is reduced. And when used as an insulator, it creates a barrier between circuits that reduces the risk of short circuits.

Difference between our voltage transformers TE108 and TE15

The voltage transformer TE15 complies with the standards designed for instrument transformers, with a primary input rating up to 720 volts and is certified insulated up to 3000 volts.

However, for more specific requests we have the TE108. This equipment has the following features that differentiate it from the TE15:

• Primary input rating up to 1000V.
• It is available in class 0.5 (standard) and in class 0.2 for installations where a more precise measurement is required.
• Thanks to its construction type, it has a high insulation voltage of up to 6kV.

How to get the TE108 voltage transformer from SACI

To purchase our products, all you have to do is contact us through the contact page on the website or by telephone. Our team will get back to you as soon as possible and answer any questions you may have about our products.

• Model: TE108
• Primary voltage: 600-1000V
• Secondary voltage: 100/110/230/400 V
• Load / Secondary power (VA): 6/25/40
• Continuous overload: 1.2 x In
• Accuracy class: 0.2 / 0.5 / 1
• Frequency: 50 / 60 Hz
• Operating range: 80 -120 % Vpn
• Functional load: 25 - 100 % (cos φ = 0.8)
• Working temperature: -10°C~+70°C
• Storage temperature: -20°C~+85°C
• Relative humidity: ≤95%

Standards

• IEC 60185
• UNE EN 618691 (IEC 618691)
• UNE EN 618692 (IEC 618692)
• VDE 0414
• IEC60801-3.4
• DIN 57414
• BS 3938
• EN 50081
• EN 50082
• IEC61010
• UL94-V0

• Insulation voltage: 6 kV
• Dimensions: 108 x 65 mm

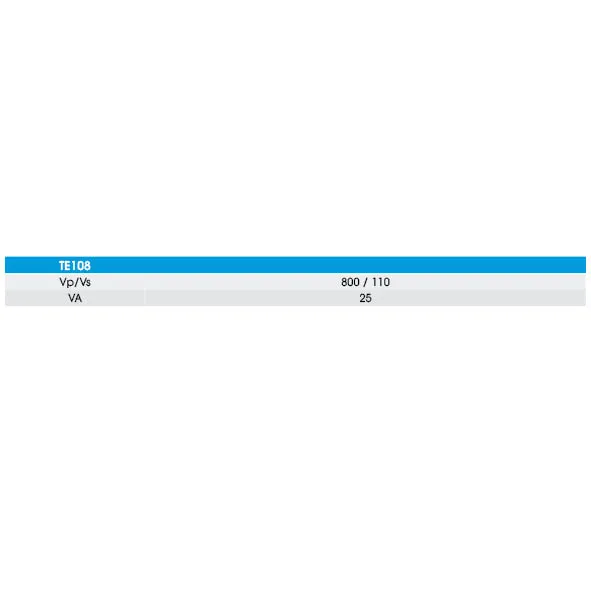

Details of the product ratio table:
