Convertidor de medida ATU_

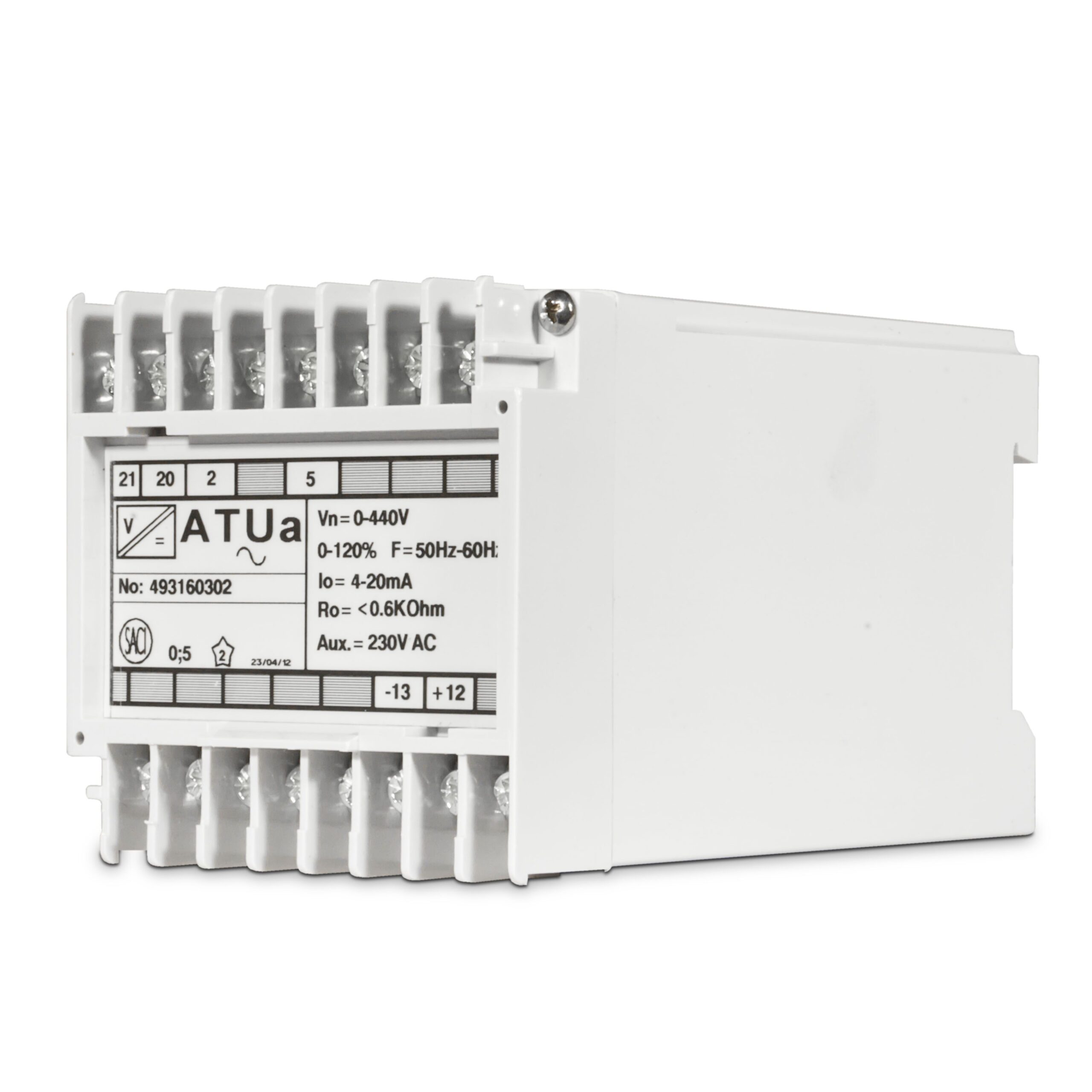

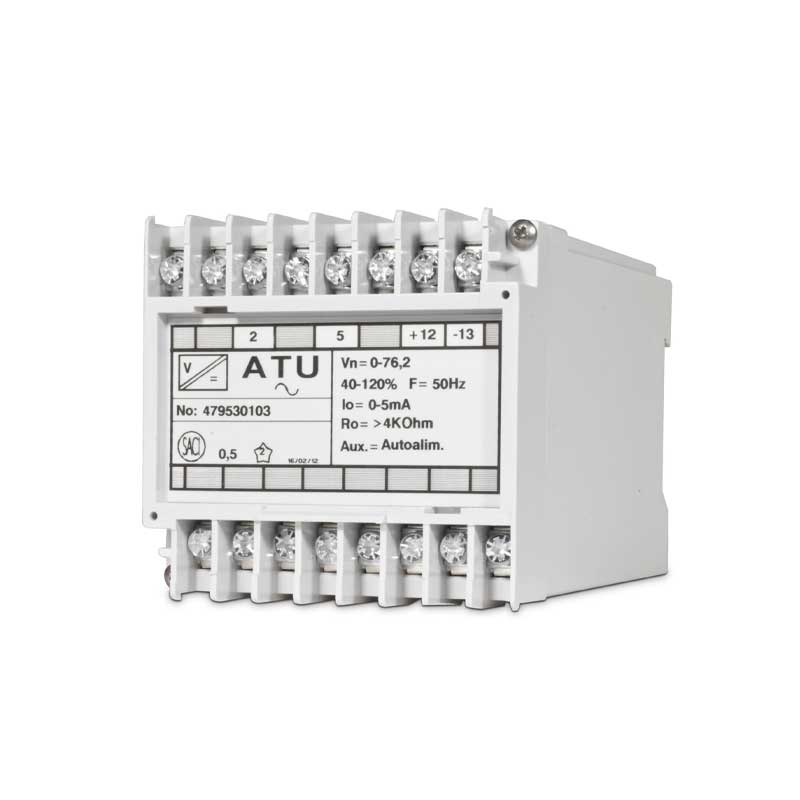

Los convertidores de medida ATU_ transforman una señal de tensión de corriente alterna en una señal de intensidad o tensión de corriente continua proporcional a la anterior. Es necesario el uso del convertidor ATUa en vez del ATU cuando se quiere una corriente de salida con cero vivo, cuando se necesita obtener una corriente de salida proporcional a la entrada desde 0% y cuando se quiere la salida en voltios. Requiere tensión auxiliar.

Out of stock


    BASIC DATA PROTECTION INFORMATION: Data controller: SOCIEDAD ANÓNIMA DE CONSTRUCCIONES INDUSTRIALES Purpose of processing: To manage the queries made and to send newsletters, commercial communications and promotions. Legitimisation of the processing: Legitimate interest and consent of the data subject. Retention of data: Data will be kept for as long as there is a mutual interest or for the time necessary to comply with legal obligations. Recipients: Service providers or collaborators. Rights: Right to withdraw consent at any time. Right of access, rectification, portability and deletion of your data and the right to limit or oppose its processing. Contact details for exercising your rights: info@saci.es Additional information: You can consult additional information in our Privacy Policy.

    Technical details

    • Technical characteristics
    • Technical data

    Tensión alterna, monofásico

    • ATU
    • ATUa

    Tensión alterna, monofásico, triple

    • ATU3
    • ATUa3

    Tensión alterna, monofásico (RMS)

    • ATUe

    ATU

    • Entrada: 100, 110, 115, 230, 400 ó 440 V
    • Salida: 1’5, 10 ó 20 mA
    • Tensión auxiliar: Autoalimentado

    ATUa

    • Entrada: 100, 110, 115, 230, 400 ó 440 V
    • Salida: 1’5, 10 ó 20 mA
    • Tensión auxiliar: Alterna o continua

    ATU3

    • Entrada: 100, 110, 115, 230, 400 ó 440 V
    • Salida: 1’5, 10 ó 20 mA
    • Tensión auxiliar: Autoalimentado

    ATUa3

    • Entrada: 100, 110, 115, 230, 400 ó 440 V
    • Salida: 1’5, 10 ó 20 mA
    • Tensión auxiliar: Alterna o continua

    ATUe

    • Entrada: 100, 110, 115, 230, 400 ó 440 V
    • Salida: 1’5, 10 ó 20 mA
    • Tensión auxiliar: Alterna o continua
