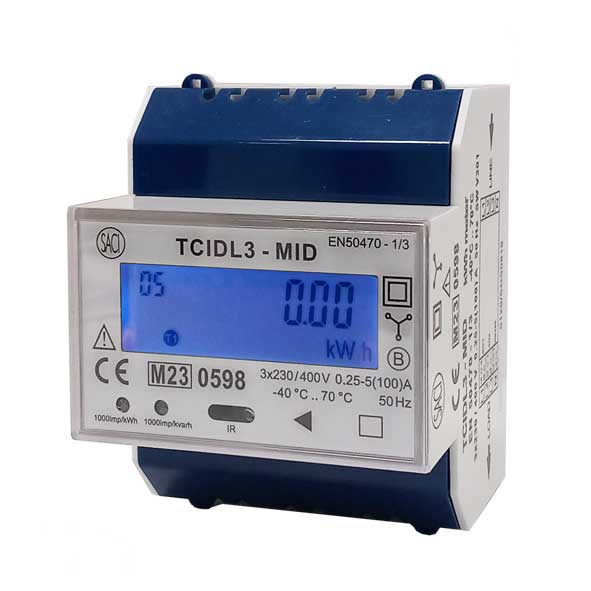

TCIDL3-MID counter

The TCIDL3-MID counter is also an analyser, measuring the various parameters of a three-phase system. The measured values can be displayed or transmitted via the communication ports.


    BASIC DATA PROTECTION INFORMATION: Data controller: SOCIEDAD ANÓNIMA DE CONSTRUCCIONES INDUSTRIALES Purpose of processing: To manage the queries made and to send newsletters, commercial communications and promotions. Legitimisation of the processing: Legitimate interest and consent of the data subject. Retention of data: Data will be kept for as long as there is a mutual interest or for the time necessary to comply with legal obligations. Recipients: Service providers or collaborators. Rights: Right to withdraw consent at any time. Right of access, rectification, portability and deletion of your data and the right to limit or oppose its processing. Contact details for exercising your rights: info@saci.es Additional information: You can consult additional information in our Privacy Policy.

    Technical details

    • Connections
    • Dimensions
    • Technical characteristics
    • Technical data
    • Rated voltage - 3 x 230 / 400 V A.C.
    • Frequency - 50Hz or 60Hz
    • Own consumption - < 10 VA; < 1 W
    • Starting current - 20 mA
    • Rated current - 0,25 - 5(100)A
    • Consumption (current) - 0.05VA (5A)
    • Pulse output - 12 - 27V <27mA
    • Communication - IR / RS485
    • Tariffs - 4

    Standards

    • EN 50470-1
    • EN 50470-3
    • EN 62053-23
    • DIN 43864
    • EN 61010

    Positive and negative active energy - 4 quadrants
    Reactive energy - 4 quadrants

    TCIDL3-MID
    2 Pulse outputs

    TCIDL3i-MID
    1 Digital input
    1 Pulse output
