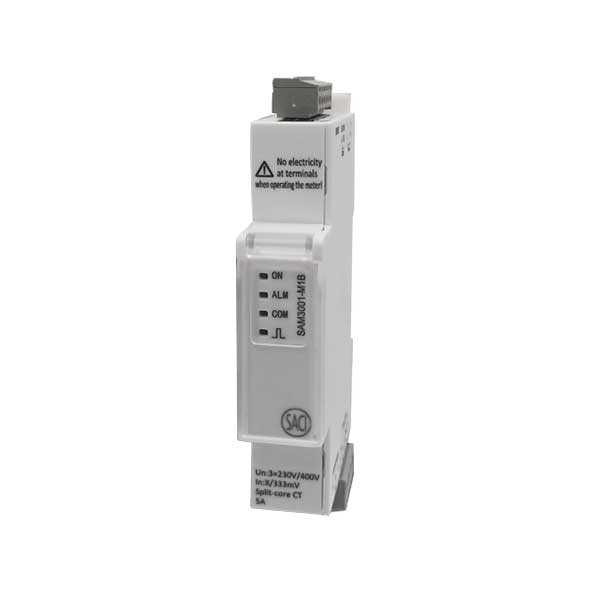

SAM3001 Network Analyzer
The SAM3001 analyser belongs to the new generation of electrical parameter monitoring equipment, capable of real-time measurement, power measurement or network quality analysis with status monitoring and alarm functions available. It measures up to 32 three-phase circuits and 96 single-phase circuits. *Available in self-powered version.
Description: The SAM3001 analyser belongs to the new generation of electrical parameter monitoring equipment, capable of real-time measurement, power measurement or network quality analysis with status monitoring and alarm functions available. It measures up to 32 three-phase circuits and 96 single-phase circuits.
*Available in self-powered version.
lvs
low voltage supervisor
advanced supervision
substation
Technical details
- Connections
- Technical characteristics
- Technical data
- Multi-loop measurement
- Up to 32 3-phase or 96 single phase
- Easy installation
- Optional display: user-friendly interface
- THD V and I
- Harmonics up to 31
- Measurement in 4 quadrants
- Voltage Peak Factor
- Current factor K
ENTRANCE
- Rated voltage: 3 x 230 / 400 V AC
- Overload: 1.2 Un - 2 Un / 10s
- Impedance: > 1.7 MΩ / Phase
- Frequency: 45 - 65 Hz
- Own consumption: < 0.1 VA / Phase
V. ASSISTANT
- Rated range: 230 V ± 20 % AC
- Own consumption: < 5 VA
EXIT
- Relay output: 230 V 1.2 A AC
- Relay isolation voltage: 5000 V AC
- Pulse output width: 80 ± 20% ms
- RS 485 port: Modbus RTU
- Baud rate: Up to 38400 bps programmable
- Insulation voltage: 4000 V AC
CURRENT INPUTS
- 2.5 mA
- 80 mA
- 330 mV Rogowski
- 330 mV 5 A mini trafos
- 330 mV 100 / 600 A mini trafos
POWER SUPPLY MODULE
- V. AC input: 80 - 270 V
- V. DC output: 24 V
- Own consumption: < 5 VA
