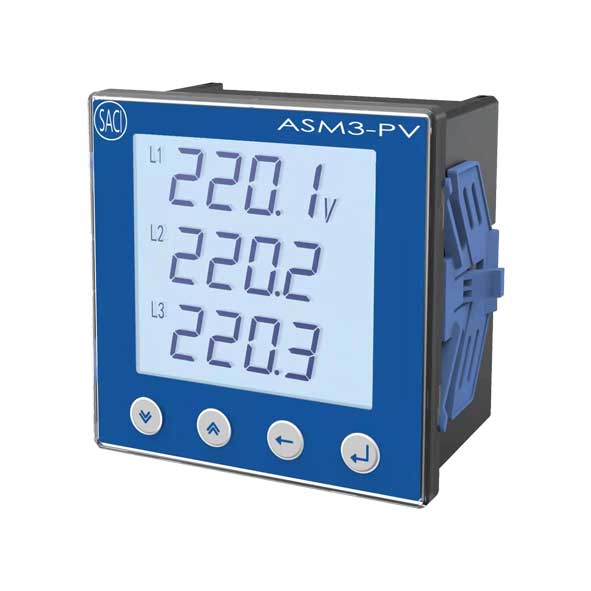

Analizador de red ASM3-PV

ASM3-PV Network analyzer

The ASM3-PV is designed for the calculation and measurement of the electrical variables of a network, such as voltage, current, frequency, power, energy, etc. The analyser can measure up to 1000V phase-to-phase directly, which makes it ideal for connection to inverters in photovoltaic plants.

Description: The ASM3-PV is designed for the calculation and measurement of the electrical variables of a network, such as voltage, current, frequency, power, energy, etc. The analyser can measure up to 1000V phase-to-phase directly, which makes it ideal for connection to inverters in photovoltaic plants.




    BASIC DATA PROTECTION INFORMATION: Data controller: SOCIEDAD ANÓNIMA DE CONSTRUCCIONES INDUSTRIALES Purpose of processing: To manage the queries made and to send newsletters, commercial communications and promotions. Legitimisation of the processing: Legitimate interest and consent of the data subject. Retention of data: Data will be kept for as long as there is a mutual interest or for the time necessary to comply with legal obligations. Recipients: Service providers or collaborators. Rights: Right to withdraw consent at any time. Right of access, rectification, portability and deletion of your data and the right to limit or oppose its processing. Contact details for exercising your rights: info@saci.es Additional information: You can consult additional information in our Privacy Policy.

    Technical specifications
    Manual
    Certificate
    Software

    Technical details

    • Connections
    • Dimensions
    • Technical characteristics
    • Technical data
    • Versions

    - DIN 96×96 mm
    - THD at V and I
    - Maximum demand, A, kW, kVA, kvar
    - Programmable current and voltage
    - Measurement and energy in 4 quadrants (0,5S)
    - RS 485 serial output

    ENTRANCE
    - Rated voltage (Un): 3×462 / 800VA
    - Rated current (In): 1A and 5A programmable
    - Voltage input consumption: <0.1VA
    Auxiliary voltage
    - V. AC/DC Aux.: 80-270V
    - Own current measurement consumption: <5VA
    EXIT
    •     RS485 port: modbus-RTU
    - Up to 19200 bps programmable
    - Connection: 2-wire

    Unique model.
