Direct ammeters

Direct ammeters are instruments used to measure the current in an electrical circuit, both in alternating current and direct current. These devices make it possible to determine the amount of current flowing in an electrical circuit.

Direct ammeters are instruments used to measure the current in an electrical circuit, both in alternating current and direct current. These devices make it possible to determine the amount of current flowing in an electrical circuit.


    BASIC DATA PROTECTION INFORMATION: Data controller: SOCIEDAD ANÓNIMA DE CONSTRUCCIONES INDUSTRIALES Purpose of processing: To manage the queries made and to send newsletters, commercial communications and promotions. Legitimisation of the processing: Legitimate interest and consent of the data subject. Retention of data: Data will be kept for as long as there is a mutual interest or for the time necessary to comply with legal obligations. Recipients: Service providers or collaborators. Rights: Right to withdraw consent at any time. Right of access, rectification, portability and deletion of your data and the right to limit or oppose its processing. Contact details for exercising your rights: info@saci.es Additional information: You can consult additional information in our Privacy Policy.

    Technical specifications
    Certificate 1Certificate 2

    Technical details

    • Technical characteristics
    • Technical data

    Before choosing an ammeter, it is essential to know its technical characteristics. SACI's direct ammeter models are available in different sizes and formats, allowing them to be adapted to various installation and measurement needs. The choice of the correct model will depend on the measuring range, the type of current and the installation format.

    DIN rail

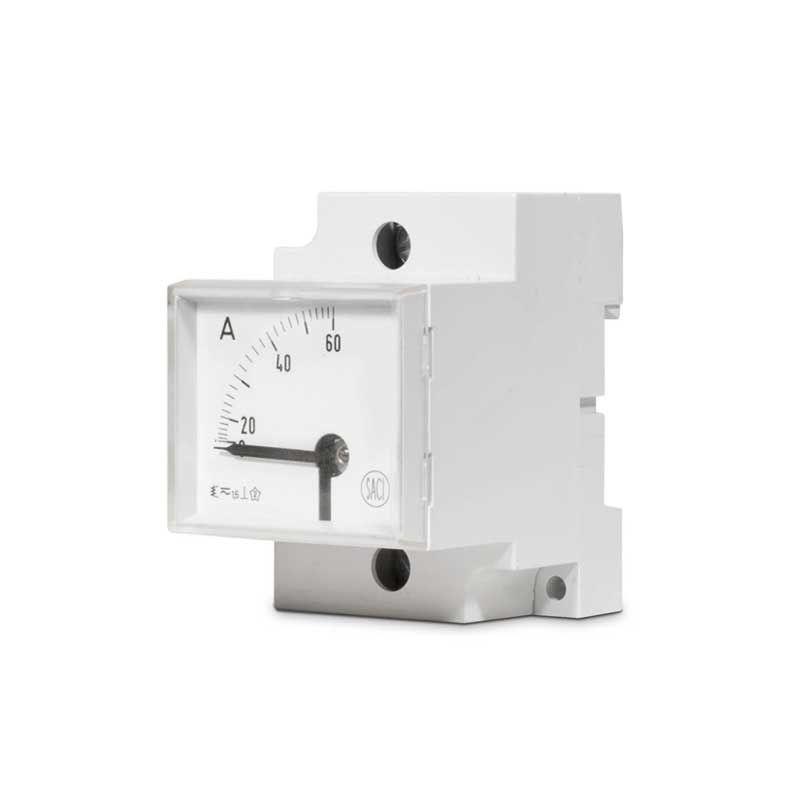

    EC5VR* - 45×52,5 mm DIN - 0,15kg

    Scale 90º Lateral

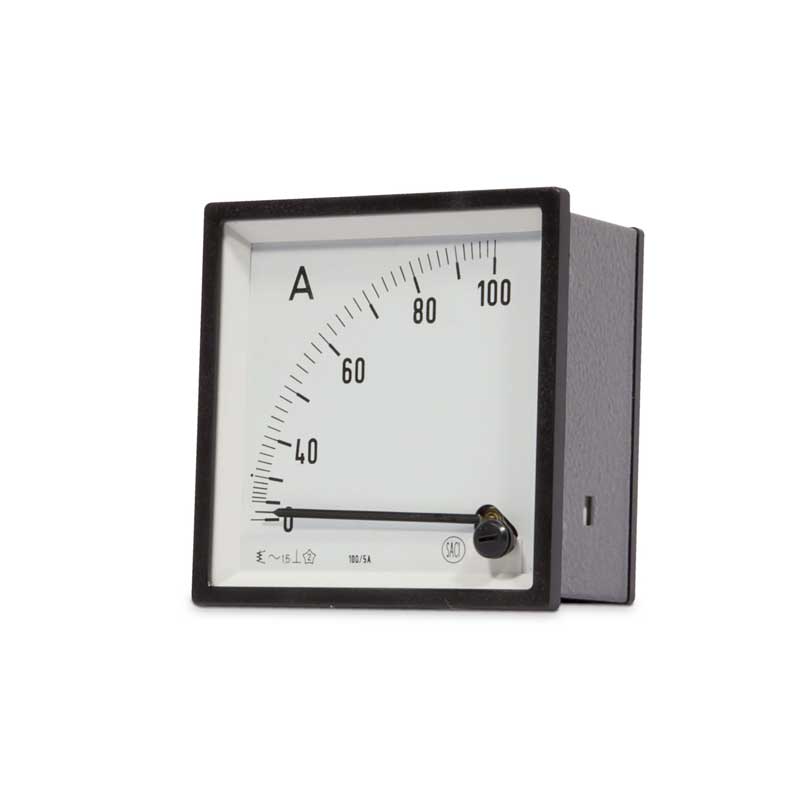

    EC3V - 96x96mm - 0,25kg
    EC2V - 144x144mm - 0,5kg

    Scale 90º central

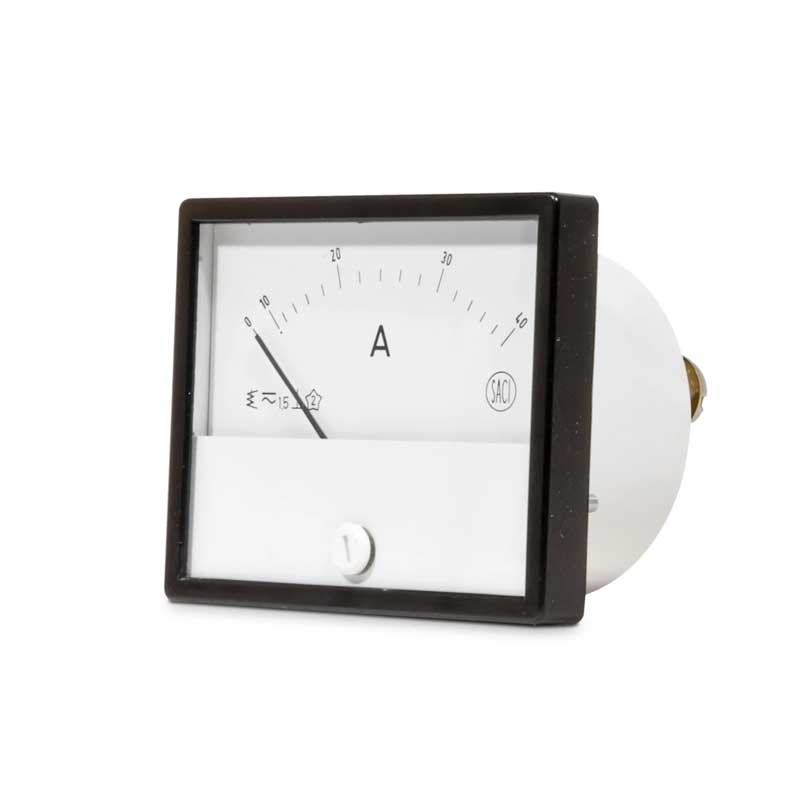

    Ecb7** - 80x64mm - 0,14kg
    Ecb3** - 105x80mm - 0,18kg
    Ecb8** - 130x100mm - 0,25kg

    * Maximum measuring range: 40 A, 40...80 A, 40...200 A
    ** Maximum measuring range: 50 A, 50...100 A, 50...250 A

    When it comes to measuring current in an electrical system, it is important to have precision equipment that ensures an accurate reading. SACI offers ammeters that meet technical standards, ensuring accuracy and performance.

    Scale: 90º.
    Frequency: 15..100 Hz
    Accuracy: 1,5 %
    Own consumption: 0.3..1 VA
    Measuring range (ln): 1; 1.5; 2.5; 2.5; 4; 5; 6; 10; 15; 20; 25; 30; 40; 40; 50; 60; 75 or 100 A
    Measuring range (2xln): 1..2; 1.5..3; 2..4; 2.5..5; 3..6; 4..8; 5..10; 6..12; 10..20; 15..30; 20..40; 25..50; 30..60; 40..80; 50..100; 60..120; 75..150 or 100..200A
    Measuring range (5xln): 1..5; 1,5..7,5; 2..10; 2,5..7,5; 3..15; 4..20; 5..25; 6..30; 10..50; 15..75; 20..100; 25..125; 30..150; 40..200; 50..250; 60..300; 75..375 or 100..500A
