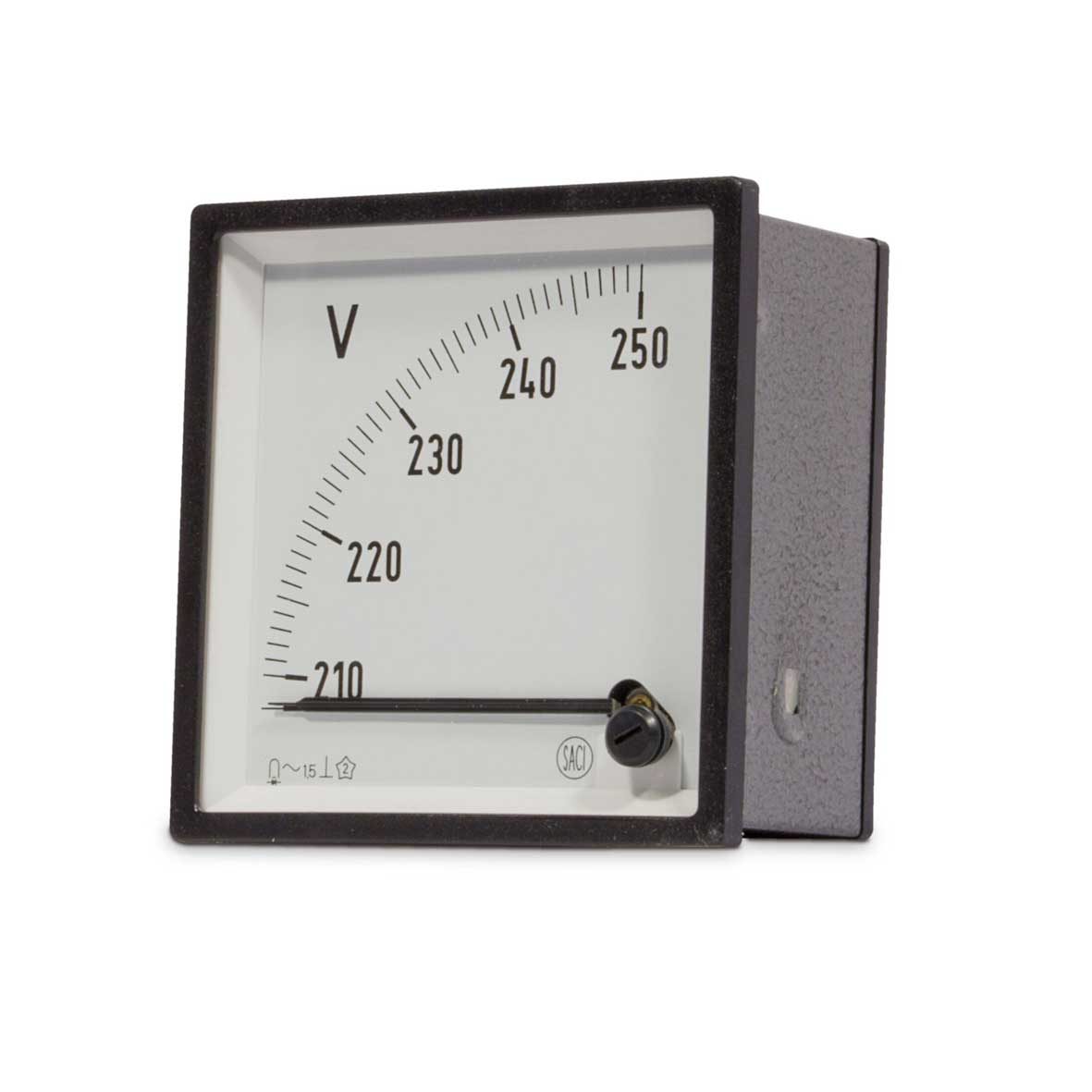

Voltímetros de valor nominal

Nominal value voltmeters

Analogue instrument designed for accurate AC voltage measurement over a specific range. Thanks to its moving coil system and the inclusion of an internal rectifier, it allows the conversion of AC signals into DC signals for a stable and proportional reading. This type of voltmeter offers a perfectly linear scale, measuring from zero, allowing even small variations to be clearly detected. Being calibrated to a specific nominal value, it provides greater accuracy over a limited range, ideal for applications where it is necessary to monitor whether the voltage remains within a certain value.

Analogue instrument designed for accurate AC voltage measurement over a specific range. Thanks to its moving coil system and the inclusion of an internal rectifier, it allows the conversion of AC signals into DC signals for a stable and proportional reading.

This type of voltmeter offers a perfectly linear scale, measuring from zero, allowing even small variations to be clearly detected. Being calibrated to a specific nominal value, it provides greater accuracy over a limited range, ideal for applications where it is necessary to monitor whether the voltage remains within a certain value.


    BASIC DATA PROTECTION INFORMATION: Data controller: SOCIEDAD ANÓNIMA DE CONSTRUCCIONES INDUSTRIALES Purpose of processing: To manage the queries made and to send newsletters, commercial communications and promotions. Legitimisation of the processing: Legitimate interest and consent of the data subject. Retention of data: Data will be kept for as long as there is a mutual interest or for the time necessary to comply with legal obligations. Recipients: Service providers or collaborators. Rights: Right to withdraw consent at any time. Right of access, rectification, portability and deletion of your data and the right to limit or oppose its processing. Contact details for exercising your rights: info@saci.es Additional information: You can consult additional information in our Privacy Policy.

    Technical specifications

    Technical details

    • Technical characteristics
    • Technical data

    Scale 90º Lateral
    CC4VGN - 72x72mm - 0,17kg
    CC3VGN - 96x96mm - 0,25kg
    CC2VGN - 144x144mm - 0,48kg

    Scale 240º.

    CC4CGN - 72x72mm
    CC3CGN - 96x96mm
    CC2CGN - 144x144mm

    Scale: 90º.
    Frequency: 50 or 60 Hz
    Accuracy: 1,5 %
    Own consumption: 2 mA
    Measuring range (Vn): 100; 110; 230 or 400 V
    Standard scales (Vn):
    - 90..110 V or ±10% X/100 V
    - 100..120 V or ±10% X/110 V
    - 210..250 V
    - 380..420 V
