Triple narrow-profile transformers TU_PS-3

The TU__PS-3 current transformer for measuring instrumentation is designed for three-phase systems. It is for through primary, either cable or plate. Its enclosure is made of plastic. They have a narrow profile, and as they have the three phases in the same unit, they allow a better adaptation in the panel due to their reduced dimensions.

The TU__PS-3 current transformer for measuring instrumentation is designed for three-phase systems. It is for through primary, either cable or plate. Its enclosure is made of plastic. They have a narrow profile, and as they have the three phases in the same unit, they allow a better adaptation in the panel due to their reduced dimensions.


    BASIC DATA PROTECTION INFORMATION: Data controller: SOCIEDAD ANÓNIMA DE CONSTRUCCIONES INDUSTRIALES Purpose of processing: To manage the queries made and to send newsletters, commercial communications and promotions. Legitimisation of the processing: Legitimate interest and consent of the data subject. Retention of data: Data will be kept for as long as there is a mutual interest or for the time necessary to comply with legal obligations. Recipients: Service providers or collaborators. Rights: Right to withdraw consent at any time. Right of access, rectification, portability and deletion of your data and the right to limit or oppose its processing. Contact details for exercising your rights: info@saci.es Additional information: You can consult additional information in our Privacy Policy.

    Technical specifications

    Technical details

    • Dimensions
    • Technical characteristics
    • Technical data
    • Ratios

    Model/ Bar/ Cable

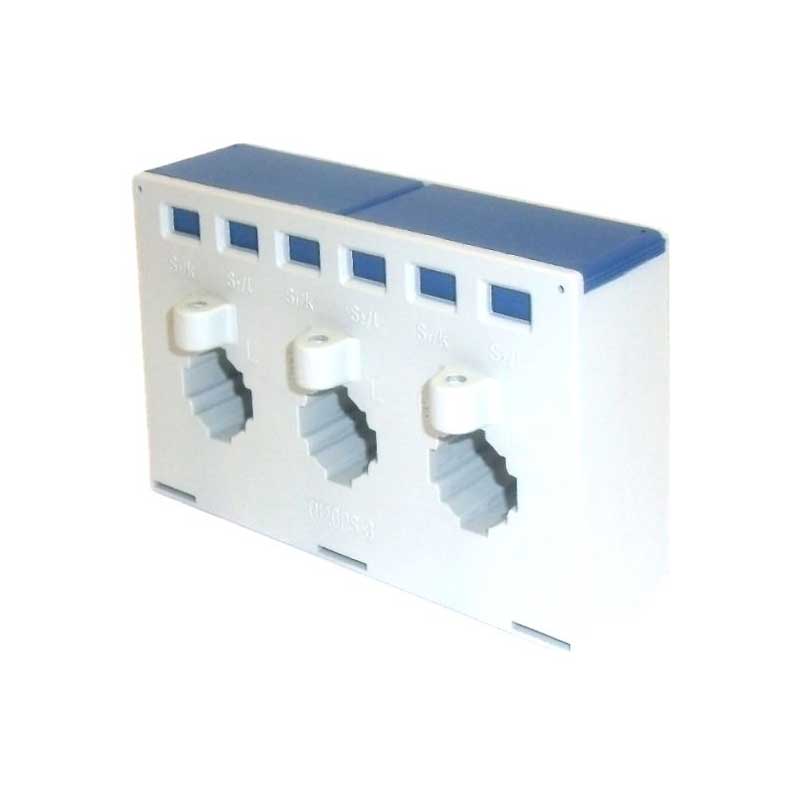

    TU20PS-3/ 20×6/ Ø18

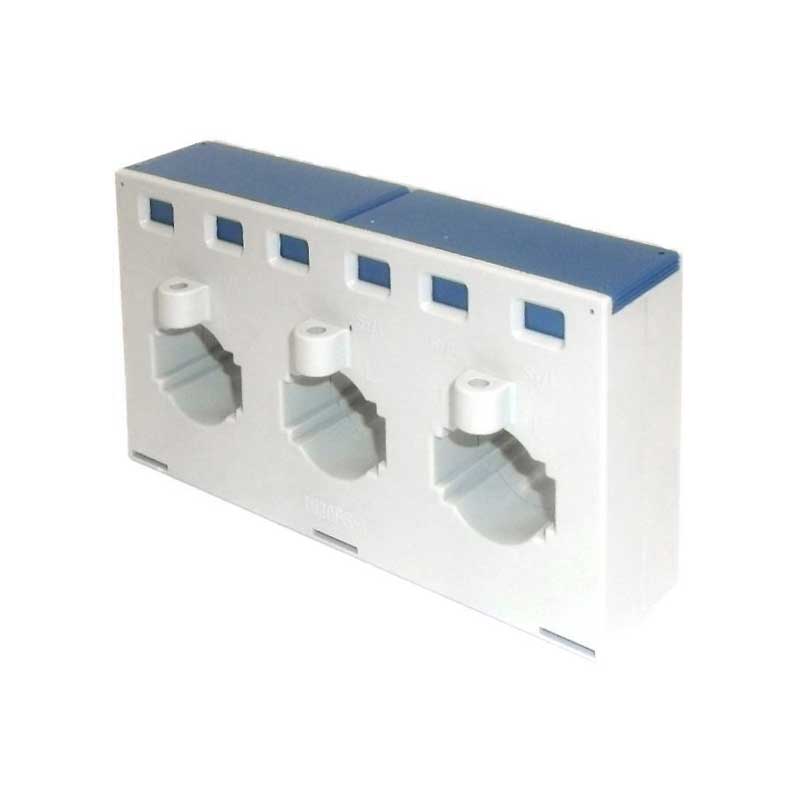

    TU30PS-3 / 30×10 / Ø25

    • Window-type
    • For cable or busbar
    • Plastic enclosure
    • Narrow profile

    Standards

    • IEC 60185
    • UNE EN 618691 (IEC 618691)
    • UNE EN 618692 (IEC 618692)
    • VDE 0414
    • IEC60801-3.4
    • DIN 57414
    • BS 3938
    • EN 50081
    • EN 50082
    • IEC61010
    • UL94-V0

    General technical data

    • Factor of safety: Fs < 5
    • Operating voltage (maximum): 720 V
    • Test voltage: 3 kV AC (1min)
    • Frequency: 50-60 hz
    • Rated thermal short-circuit current: Ith limited by cable or primary busbar dimensions
    • Rated dynamic current: IDyn = 2,5 x Ith
    • Continuous overload: ID = 1.2 x IN
    • Operating temperature: -10 ... 50 ºC
    • Accuracy: 0.5 - 1 - 3 (0.2s; 0.2 and 0.5s on request)
    • Nominal secondary current: /5 or /1A
    • Insulation class: Class E // Class B (130 ºC) available
