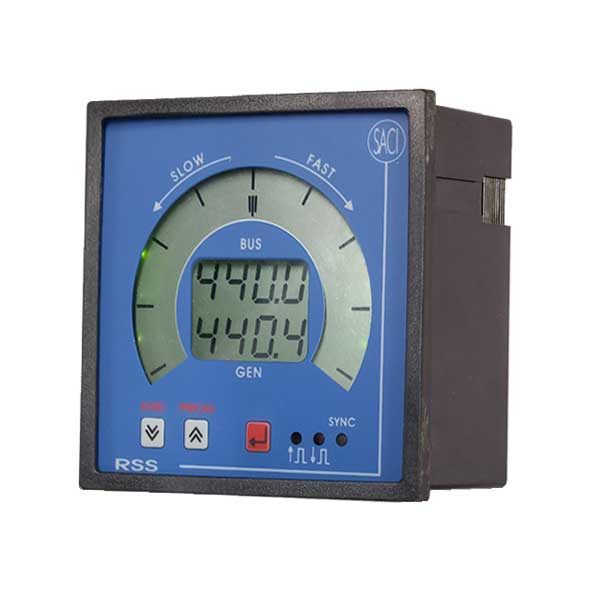

Sincronoscopio /Relé de sincronización digital

Sincronoscopio /Relé de sincronización digital

Permite tanto la visualización de la fase y la magnitud de las dos tensiones procedentes de dos redes, como la maniobra de de dos redes, como la maniobra de sincronización entre ambas.


    BASIC DATA PROTECTION INFORMATION: Data controller: SOCIEDAD ANÓNIMA DE CONSTRUCCIONES INDUSTRIALES Purpose of processing: To manage the queries made and to send newsletters, commercial communications and promotions. Legitimisation of the processing: Legitimate interest and consent of the data subject. Retention of data: Data will be kept for as long as there is a mutual interest or for the time necessary to comply with legal obligations. Recipients: Service providers or collaborators. Rights: Right to withdraw consent at any time. Right of access, rectification, portability and deletion of your data and the right to limit or oppose its processing. Contact details for exercising your rights: info@saci.es Additional information: You can consult additional information in our Privacy Policy.

    Technical specifications
    Certificate

    Technical details

    • Technical characteristics
    • Technical data

    RSS1 (2 hilos) – 96x96mm – 0,85kg – 110 ó 230 V
    RSS3 (3 hilos) – 96x96mm – 0,85kg – 110, 230, 400, ó 440 V

    -Entrada: 110, 230, 400 ó 440 V ±20 % (Precisión: 0,5 %)
    -Margen de frecuencia: 45 a 65 Hz (Precisión: 0,1 %)
    -Margen de diferencia de fase: ±180º (Precisión: 1 %)
    -Margen de diferencia de tensiones: ±100 % (Precisión: 1 %)
