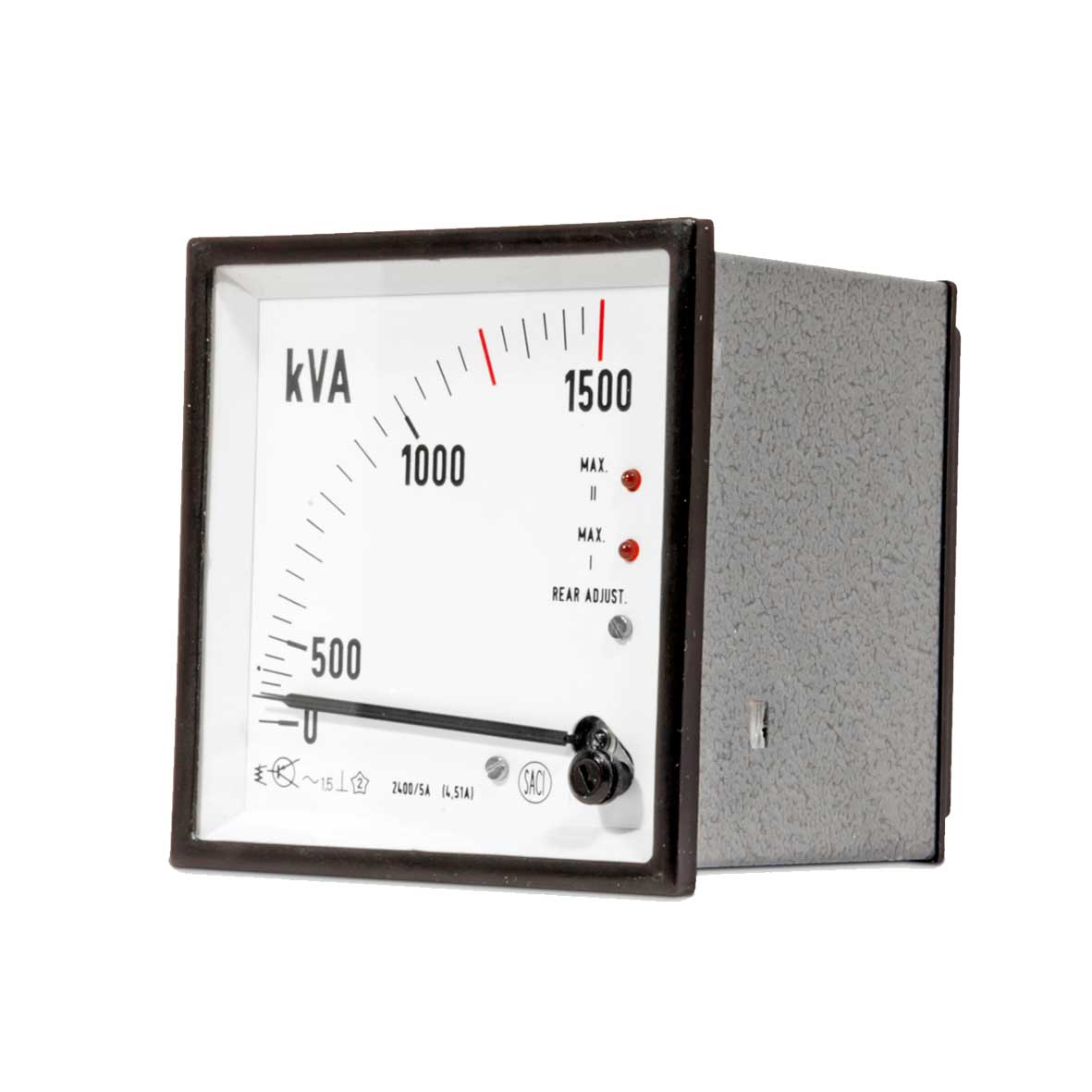

Instruments with contacts

Measurement (indication) and control (maintaining it within a given range in value and time) of any electrical quantity.

I have read and accept the privacy policy
I agree to receive personalised commercial communications from saci.es

BASIC DATA PROTECTION INFORMATION: Data controller: SOCIEDAD ANÓNIMA DE CONSTRUCCIONES INDUSTRIALES Purpose of processing: To manage the queries made and to send newsletters, commercial communications and promotions. Legitimisation of the processing: Legitimate interest and consent of the data subject. Retention of data: Data will be kept for as long as there is a mutual interest or for the time necessary to comply with legal obligations. Recipients: Service providers or collaborators. Rights: Right to withdraw consent at any time. Right of access, rectification, portability and deletion of your data and the right to limit or oppose its processing. Contact details for exercising your rights: info@saci.es Additional information: You can consult additional information in our Privacy Policy.

Technical specifications

Technical details

Technical characteristics
Technical data
Versions

Scale: 90º.
Accuracy: 1,5 %
Frequency: 50 or 60 Hz
Own consumption: <1.5 VA for AC / <1 mA for DC
2 contacts and 2 control LEDs
Subsequent adjustment
2 Channels
2 potentiometers per channel
Regulation: 0-100% of full scale value or±100% (Bidirectional)
Time delay: 0-30 s.. ±10%
Repeatability: ±1% of full scale value
Output relays: 2 (Max. 400 V, 1 A, 200 VA A.C.)
Mechanical life: 10⁷ operations
Control cover: Sealable
Auxiliary power supply: 110, 230, 400V AC

Technical data equivalent to stylus instruments
- Mobile iron (mA and A)
- Moving coil (mV, V, µA, mA and A)
- Moving coil with rectifier ( mV, V, mA and A)
- Frequency meters (Hz)
-Meters for converters (mA and V)

..A/1
Contacts: 1 Min - 1 Max
Dimensions: 96x96mm
Approx. weight: 0.55kg
..A/2
Contacts: 2 Max
Dimensions: 96x96mm
Approx. weight: 0.55kg
