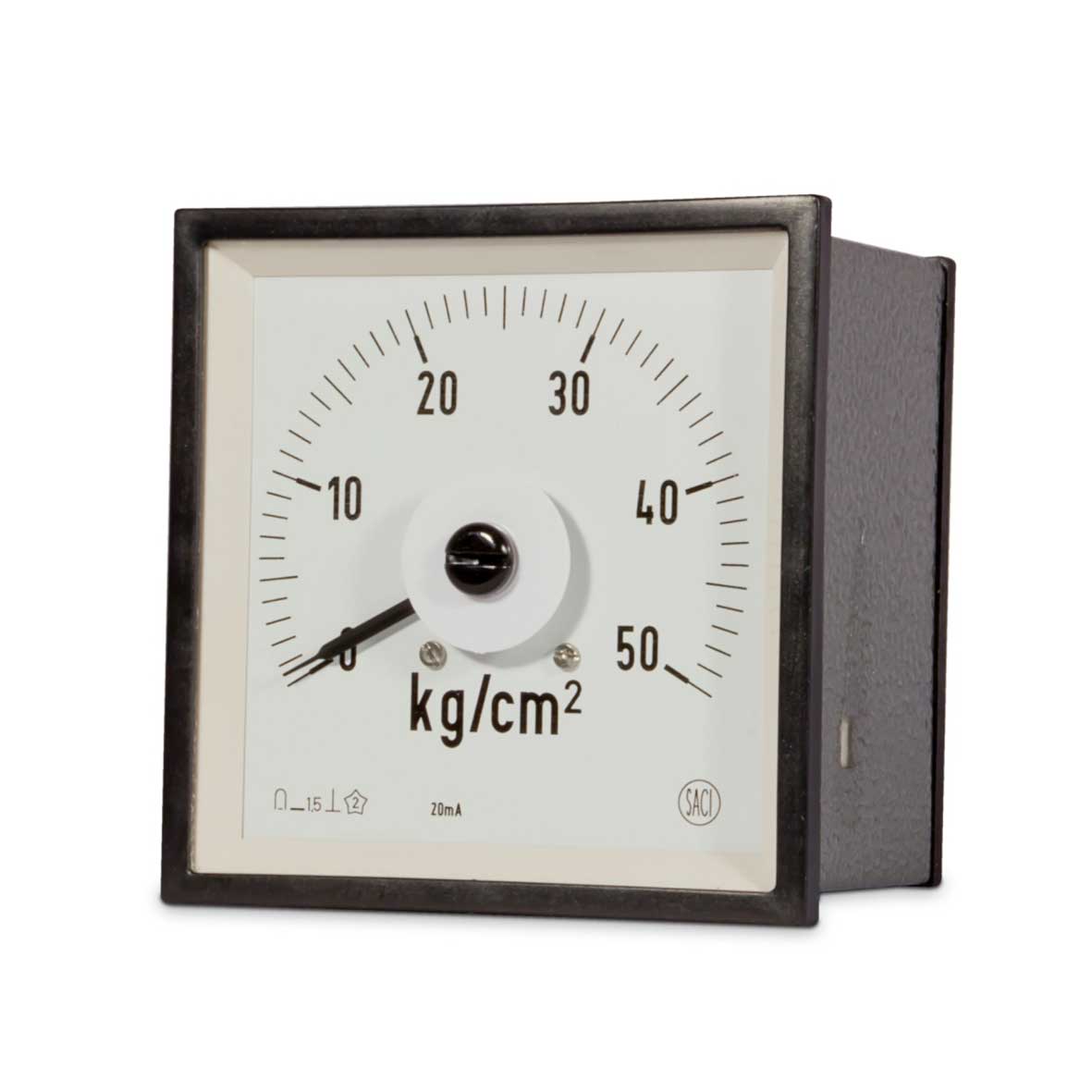

Indicadores de unidades no eléctricas

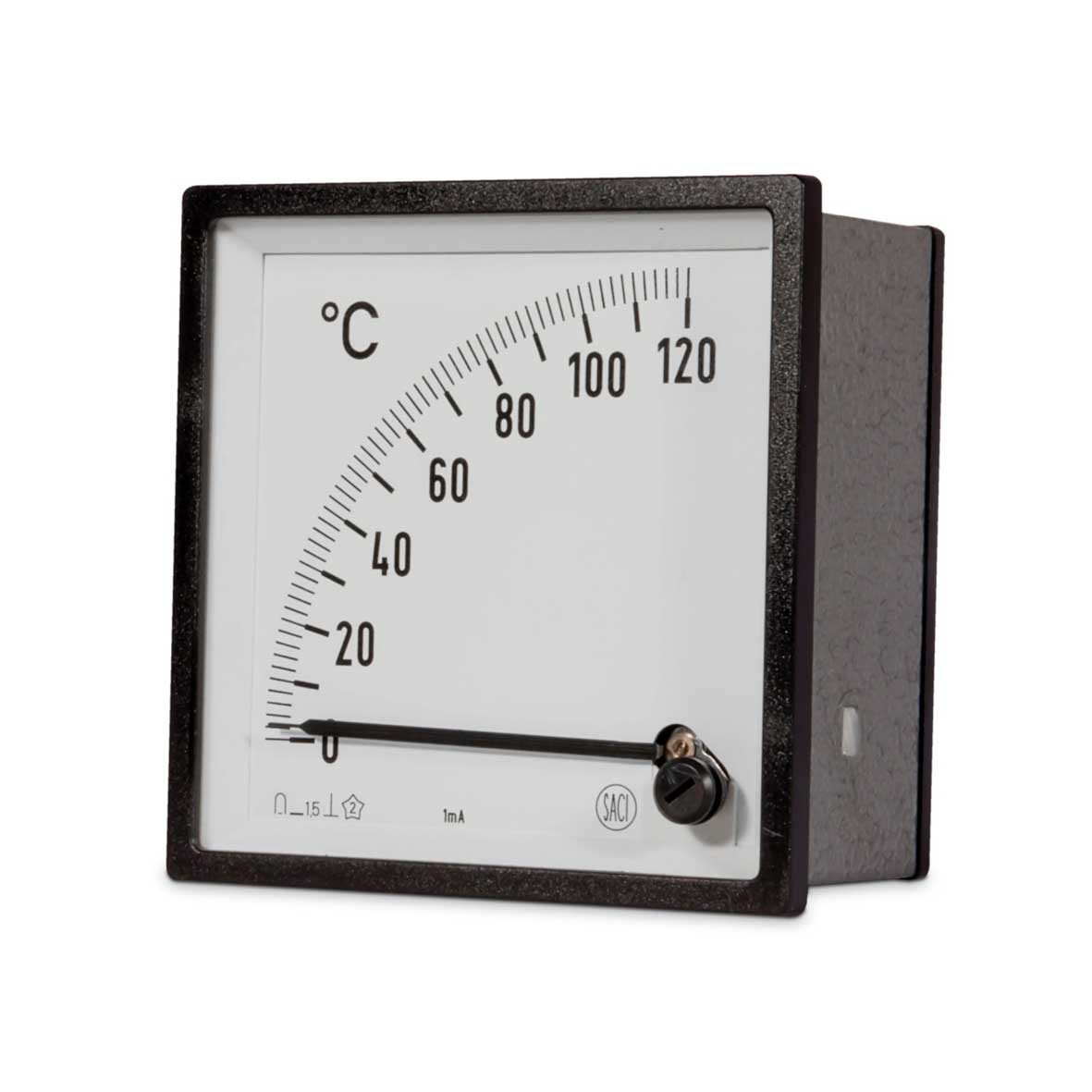

Indicadores de unidades no eléctricas - Image 2

Indicadores de unidades no eléctricas

Medida de magnitudes procedentes de transductores o convertidores, calibrados según sus curvas de función. Corriente continua


    BASIC DATA PROTECTION INFORMATION: Data controller: SOCIEDAD ANÓNIMA DE CONSTRUCCIONES INDUSTRIALES Purpose of processing: To manage the queries made and to send newsletters, commercial communications and promotions. Legitimisation of the processing: Legitimate interest and consent of the data subject. Retention of data: Data will be kept for as long as there is a mutual interest or for the time necessary to comply with legal obligations. Recipients: Service providers or collaborators. Rights: Right to withdraw consent at any time. Right of access, rectification, portability and deletion of your data and the right to limit or oppose its processing. Contact details for exercising your rights: info@saci.es Additional information: You can consult additional information in our Privacy Policy.

    Technical specifications

    Technical details

    • Technical characteristics
    • Technical data
    • Versiones

    Escala 90º
    CC5V – 48x48mm – 0,10kg
    CC4V – 72x72mm – 0,21kg
    CC3V – 96x96mm – 0,58kg
    Escala 240º
    CC5C – 48x48mm – 0,20kg
    CC4C – 72x72mm – 0,32kg
    CC4C – 96x96mm – 0,38kg

    -Escala: 90 ó 240º
    -Precisión: 1,5%

    VOLTÍMETROS
    Rango de medida (Vn): 0-1; 0-5 ó 0-10 V // 1-5 ó 2-10 V

    MILIAMPERÍMETROS
    Rango de medida (In): 0-1; 0-5; 0-10 ó 0-20 mA // 4-20 mA

    Ejemplos de unidades: mA, A, kA, N, mV, V, kV, kN, Hz, ºφ,ºC, ºF, W , kW, MW, VA, var, kvar, Mvar, kVA, Ω.
    Rpm, %, m, l/h, pH, mbar, bar, mm, Kg, Kgcm, mm/sec, mmHg, dB, kPa, MPa…
