Fasímetros digitales

Digital phase angle meters

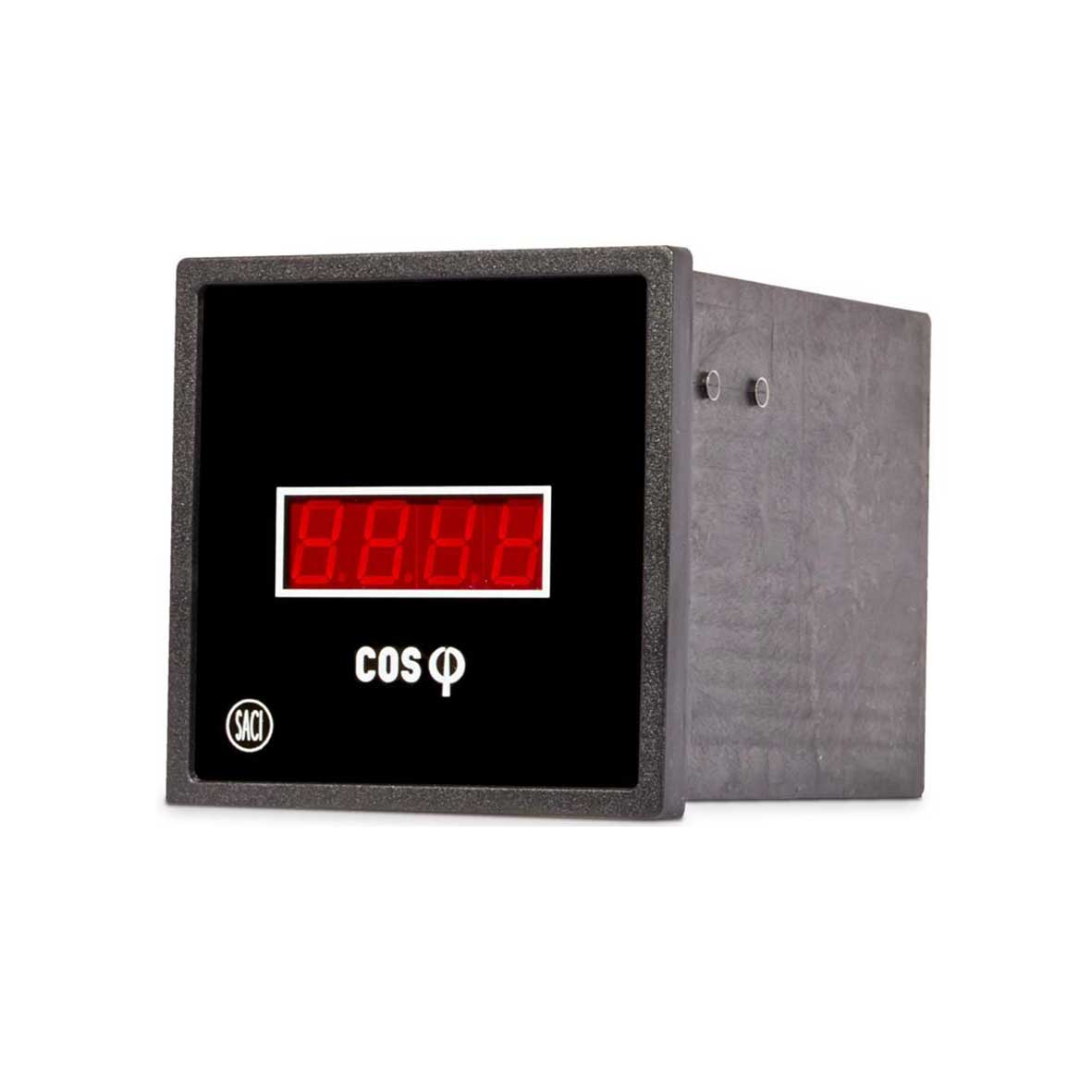

3 1⁄2-digit single-phase and balanced three-phase digital phasimeter, designed to provide accurate power factor measurements in electrical systems. It has a red LED display with 14.3 mm high digits. Its own consumption is less than 1 mA per phase at measurement and less than 3 VA between phases (balanced three-phase) or between phase and neutral (single-phase). It offers a accuracy of 0,5% at 90 electrical degrees and a measurement range of CAP 0-1-0 IND. This digital phasimeter offers detailed data to identify and correct energy efficiency problems.

3 1⁄2-digit single-phase and balanced three-phase digital phasimeter, designed to provide accurate power factor measurements in electrical systems. It has a red LED display with 14.3 mm high digits. Its own consumption is less than 1 mA per phase at measurement and less than 3 VA between phases (balanced three-phase) or between phase and neutral (single-phase). It offers a accuracy of 0,5% at 90 electrical degrees and a measurement range of CAP 0-1-0 IND. This digital phasimeter offers detailed data to identify and correct energy efficiency problems.


    BASIC DATA PROTECTION INFORMATION: Data controller: SOCIEDAD ANÓNIMA DE CONSTRUCCIONES INDUSTRIALES Purpose of processing: To manage the queries made and to send newsletters, commercial communications and promotions. Legitimisation of the processing: Legitimate interest and consent of the data subject. Retention of data: Data will be kept for as long as there is a mutual interest or for the time necessary to comply with legal obligations. Recipients: Service providers or collaborators. Rights: Right to withdraw consent at any time. Right of access, rectification, portability and deletion of your data and the right to limit or oppose its processing. Contact details for exercising your rights: info@saci.es Additional information: You can consult additional information in our Privacy Policy.

    Technical specifications
    Certificate

    Technical details

    • Technical characteristics
    • Technical data

    Single-phase. Alternating current.

    • DH4S (72×72)
    • DH46S (72×36)
    • DH3S (96×96)
    • DP35S (96×48)

    Three-phase balanced. Alternating current.

    • DH4SI (72×72)
    • DH46SI (96×96)
    • DH3SI (72×36)
    • DP35SI (96×48)
      • Display: red LED, digit height 14.3 mm, high brightness
      • Maximum reading: 1.000
      • Indication of overrun: —
      • Voltage input: 100, 110, 230 or 400 V AC
      • Own consumption:

    < 1 mA per phase (measured)
    < 3 VA between phases (balanced 3-phase) or between phase and neutral (single-phase)

      • Current input:

    x/1 or x/5 A
    Own consumption: < 0.25 VA

      • Accuracy: 0.5% (90º electrical)
      • Temperature quotient: 0,01%/ºC
      • Measuring range: CAP 0-1-0 IND
      • IND: no sign in the display
      • CAPnegative sign in the display
      • More information on the digital phasimeter:

    LO.I for current < 10% In
    HI.I for current > 120% In
    HI.U for voltage > 120% Vn
