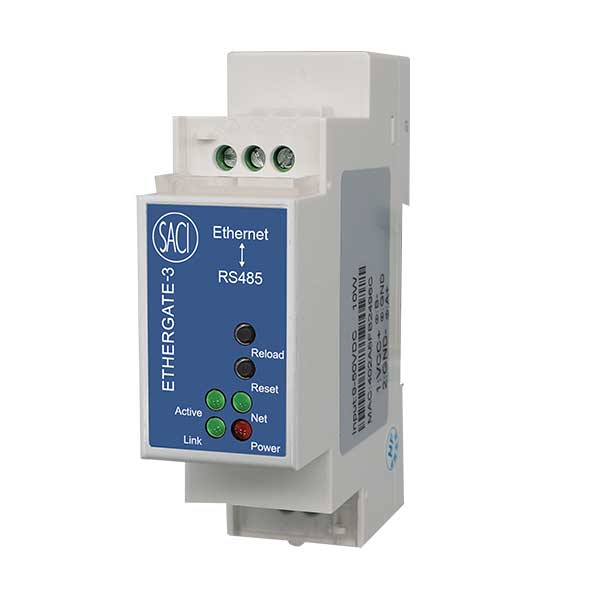

ETHERGATE 3 - RS485 to Ethernet Converter
The ETHERGATE 3 converter is a gateway for connecting an RS-485 network to an Ethernet network.
The ETHERGATE 3 converter is a gateway for connecting an RS-485 network to an Ethernet network.
Technical details
- Dimensions
- Technical characteristics
- Technical data
ELECTRICAL CHARACTERISTICS
- Input voltage : AC option: 100 ~ 240 V @50~60Hz // DC option: 9 ~ 50 V
- Consumption : ~ 100 mA
- Power : < 400 mW
SYSTEM INFORMATION
- Processor/Frequency: Cortex-M3/96MHz
- Flash / SDRAM: 2 MB /128 KB
- Operating system: FreeRTOS
ETHERNET PORT
- No. of ports: 1
- Interface standard: 10/100 Base-T Auto-Negotiation
- Transformer: Integrated
- Network protocol: IP, TCP, UDP, DHCP, DNS, ARP, AutoIP, ICMP, Telnet, NTP, Modbus TCP, HTTP Server/ Client
- Security protocol: AES 128Bit, DES3
RS485 SERIAL PORT
- No. of ports: 1
- Speed: 600 bps ~ 460800 bps
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 2
- Parity: none - even - odd
- Flow control: No flow control // Xon/ Xoff flow control software
SOFTWARE
- Web pages: Http Web Configuration
- Configuration: Web / CLI / XML import / Telnet / IOTService PC Software / UART Fast Config
- Firmware update: Website / IOTService Tools
OTHER CHARACTERISTICS
- Size: 97,6 x 64,95 x 27, 50mm
- Operating temp. : - 40 / + 85°C
- Storage temp.: - 45 / + 105°C
- Relative humidity: 5 ~ 95% Non-condensing
