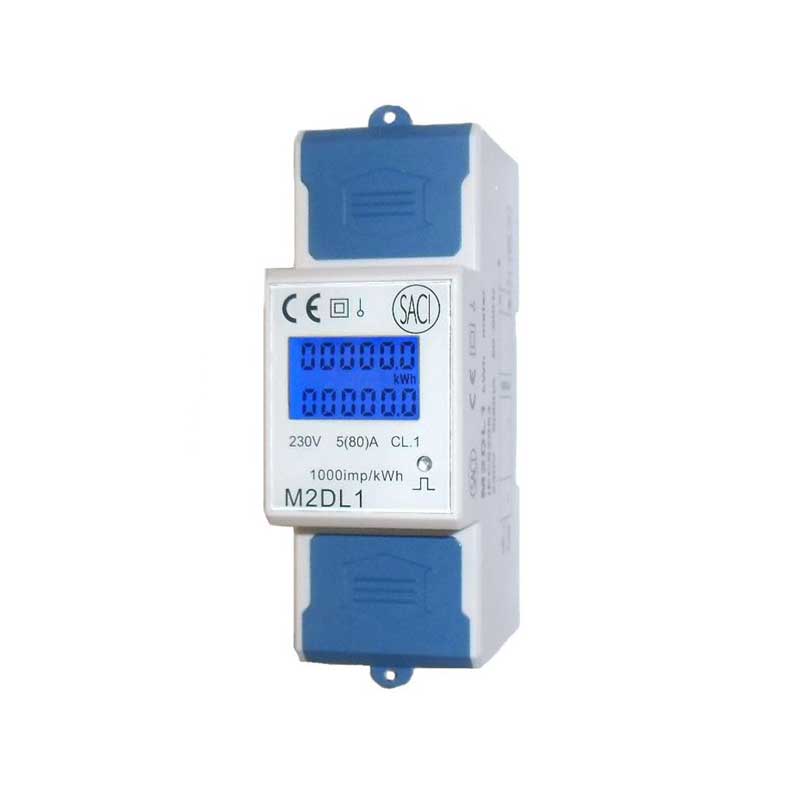

M2DL1 Energy meter
The M2DL1 energy meter is a single-phase device designed to provide accurate measurement of energy consumption. Thanks to its Cl. 1 accuracy (EN 62053), this simple meter guarantees measurement accuracy, making it perfect for applications requiring detailed monitoring of electricity consumption. This model allows direct metering up to 80 A.
The M2DL1 energy meter is a single-phase device designed to provide accurate measurement of energy consumption. Thanks to its Cl. 1 accuracy (EN 62053), this simple meter guarantees measurement accuracy, making it perfect for applications requiring detailed monitoring of electricity consumption. This model allows direct metering up to 80 A.
Technical details

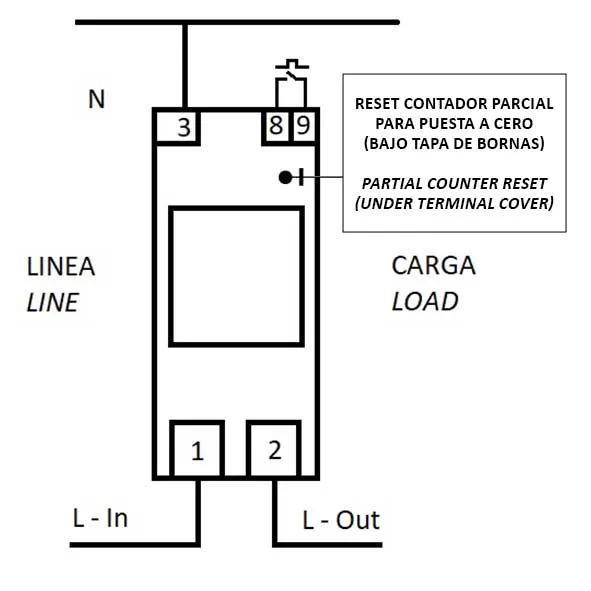

- Connections
- Dimensions
- Description
- Technical characteristics
- Technical data
- Standards
The single-phase energy meter is equipped with an internal shunt. This eliminates the need for external elements for current measurement. In addition, it has an LED energy consumption indicator, which provides a clear, real-time display of the status of the energy used.
The M2DL1 energy meter not only offers very good metering accuracy, but also includes advanced functions, such as two counters (partial and total), allowing for comprehensive monitoring of consumption over time. This functionality is particularly useful in applications where it is necessary to differentiate between specific consumptions or different time periods.
Another highlight is its SO pulse output (DIN 43864), which facilitates the integration of the device into energy management systems, providing real-time data for further analysis. This makes the single-phase energy meter an important tool for energy saving and cost control.
Applications
The M2DL1 single-phase energy meter is perfect for a variety of applications that require accurate measurement of energy consumption. Its design and advanced features make it an excellent choice for projects in homes, offices, small commercial facilities... In addition, its ability to integrate with energy management systems allows you to optimise energy use and reduce operating costs.
- Single-phase energy meter
- Accuracy Cl.1 (EN 62053)
- Direct measurement up to 80 A
- Internal shunt
- LED power consumption indicator
- 6-digit electronic counter
- Two counters (partial and total)
- Pulse output: SO (DIN 43864)
- 2 DIN modules
VOLTAGE INPUT
- Rated voltage (Un): 230 V AC
- Own consumption: < 8 VA, 2 W
- Measurement range: ± 15 % A
- Frequency: 50 - 60 Hz
CURRENT INPUT
- Intensity IB (IMAX): 5 (80) A
- Own consumption: < 1 VA
- Measurement range: 0 - 100 % IMAX
- Starting current (In): < 0,4 % IB
PULSE OUTPUT (OPTOCOUPLER)
- Number of outlets: 1
- Impulse weight: 1000 pulses / kWh
- Type SO (DIN 43864): Optocoupler
- Isolation: 3 kV, 1 min
- Maximum intensity: 50 mA
- Tension: 5 - 48 V DC
- Duration of the impulse: > 70 ms
OTHER CHARACTERISTICS
- Meter typeLED display
- Digits: 5 integers + 1 decimal place
- No. of counters2 (total and partial)
- Class: 1 (EN 62053)
- T. of operation: - 20 / + 60 ºC
- Energy indicatorLED flashing
- Counter constant: 1000 pulses kWh
- Envelope material: ABS, UL94 V0
- Modular box: 2 modules (35 mm)
- Terminals: Pre-sealable
- TerminalsWith screw
- Phase input terminals: 24 mm2
- Impulse and neutral terminals: 12 mm2
- AssemblyDIN rail 35 mm
The M2DL1 energy meter complies with the following standards to ensure its safety in different environments:
EN 62053-21
EN 62053-22
EN 62053-23
DIN 43864
EN 61010
