Ammeters (mA)

Moving-iron mA ammeter, with AC current measurement. True RMS value. Fixed scale. DIN rail or panel.

Moving-iron mA ammeter, with AC current measurement. True RMS value. Fixed scale. DIN rail or panel.


    BASIC DATA PROTECTION INFORMATION: Data controller: SOCIEDAD ANÓNIMA DE CONSTRUCCIONES INDUSTRIALES Purpose of processing: To manage the queries made and to send newsletters, commercial communications and promotions. Legitimisation of the processing: Legitimate interest and consent of the data subject. Retention of data: Data will be kept for as long as there is a mutual interest or for the time necessary to comply with legal obligations. Recipients: Service providers or collaborators. Rights: Right to withdraw consent at any time. Right of access, rectification, portability and deletion of your data and the right to limit or oppose its processing. Contact details for exercising your rights: info@saci.es Additional information: You can consult additional information in our Privacy Policy.

    Technical specifications
    Certificate 1Certificate 2

    Technical details

    • Technical characteristics
    • Technical data

    DIN rail

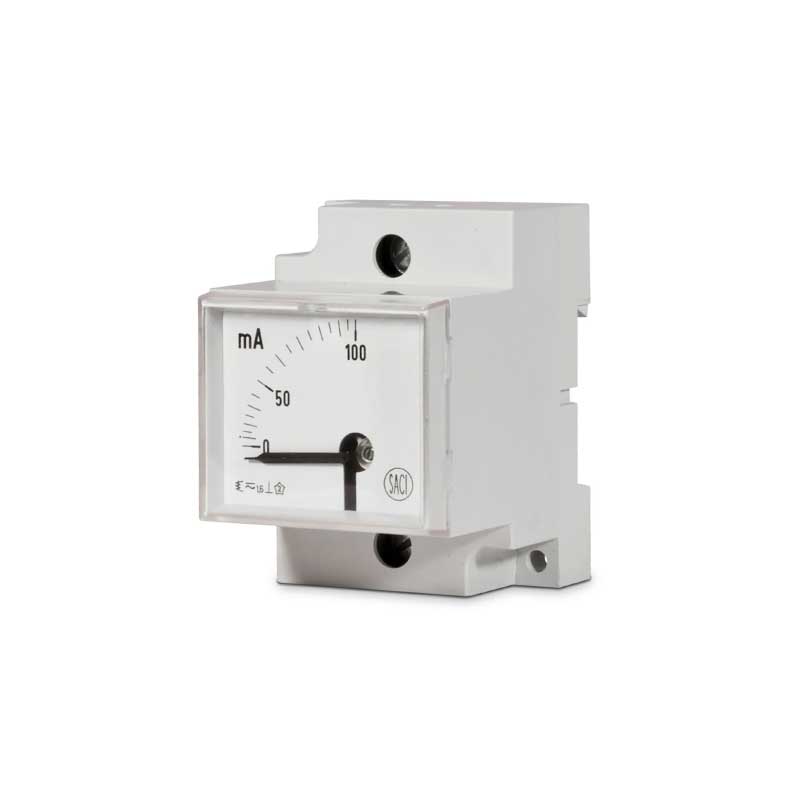

    EC5VR - 45×52,5 mm DIN - 0,15kg

    Scale 90º Lateral
    EC5V - 48x48mm - 0,14kg
    EC4V - 72x72mm - 0,2kg
    EC3V - 96x96mm - 0,25kg
    EC2V - 144x144mm - 0,5kg

    Scale 90º central

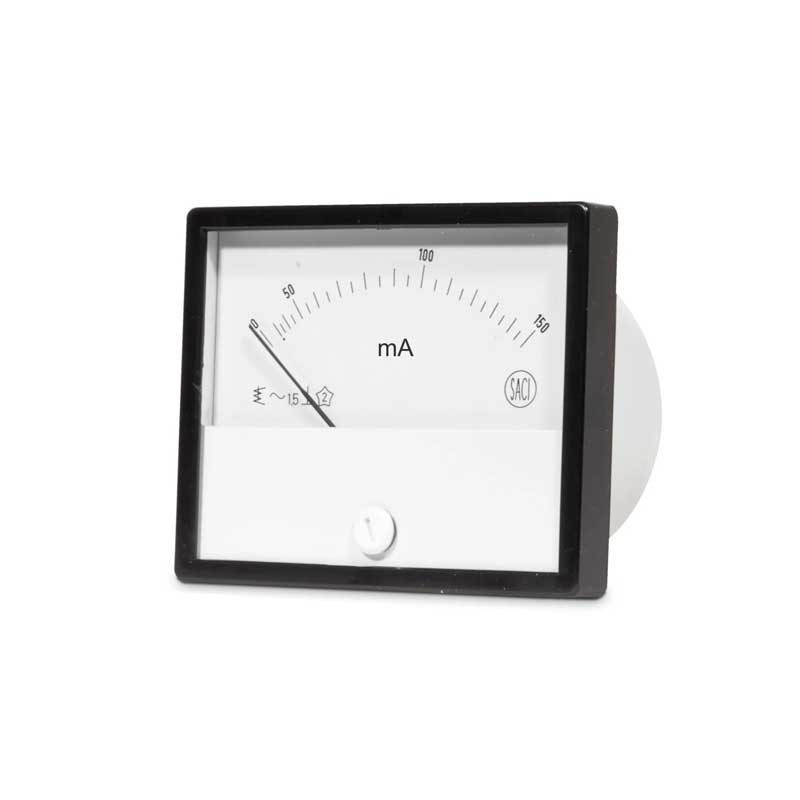

    Ecb7 - 80x64mm - 0,14kg
    Ecb3 - 105x80mm - 0,18kg
    Ecb8 - 130x100mm - 0,25kg

    Scale: 90º.
    Frequency: 15..100 Hz
    Accuracy: 1,5 %
    Own consumption: 0.3..1 VA
    Measuring range (ln): 100; 150; 200; 250; 300; 400; 500 or 600 mA
    Measuring range (2xln): 100..200; 150..300; 200..400; 250..500; 300..600; 400..800; 500..1000 or 600..1200 mA
    Measuring range (5xln): 100..500; 150..750; 200..1000; 250..1250; 300..1500; 400..2000; 500..2500 or 600..3000 mA
