AC ammeters with rectifier

Ammeters with a moving coil and rectifier system are designed to measure alternating current (AC) while maintaining the advantages of accuracy and linearity of DC instruments.

The built-in rectifier converts the AC signal to DC, allowing the moving coil mechanism to operate correctly. This results in a fully linear scale and indication starting from zero, giving a clear, accurate and sensitive reading.

It is intended for use in installations where an accurate display of small variations and a stable response are required.

Ammeters with a moving coil and rectifier system are designed to measure alternating current (AC) while maintaining the advantages of accuracy and linearity of DC instruments.

The built-in rectifier converts the AC signal to DC, allowing the moving coil mechanism to operate correctly. This results in a fully linear scale and indication starting from zero, giving a clear, accurate and sensitive reading.

It is intended for use in installations where an accurate display of small variations and a stable response are required.


    BASIC DATA PROTECTION INFORMATION: Data controller: SOCIEDAD ANÓNIMA DE CONSTRUCCIONES INDUSTRIALES Purpose of processing: To manage the queries made and to send newsletters, commercial communications and promotions. Legitimisation of the processing: Legitimate interest and consent of the data subject. Retention of data: Data will be kept for as long as there is a mutual interest or for the time necessary to comply with legal obligations. Recipients: Service providers or collaborators. Rights: Right to withdraw consent at any time. Right of access, rectification, portability and deletion of your data and the right to limit or oppose its processing. Contact details for exercising your rights: info@saci.es Additional information: You can consult additional information in our Privacy Policy.

    Technical specifications
    Certificate

    Technical details

    • Technical characteristics
    • Technical data

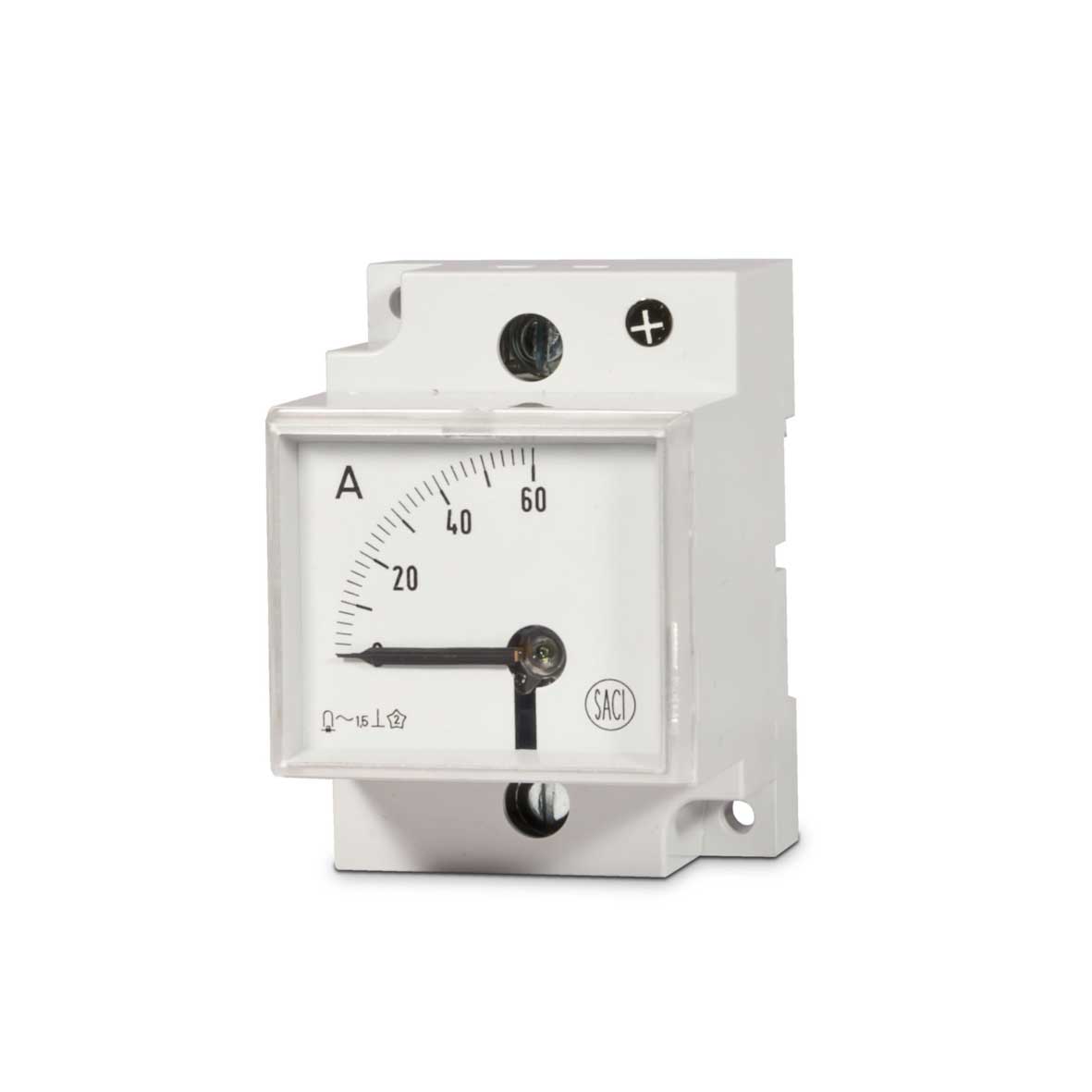

    DIN rail
    CC5VRG - 45×52,5 mm DIN - 0,15kg

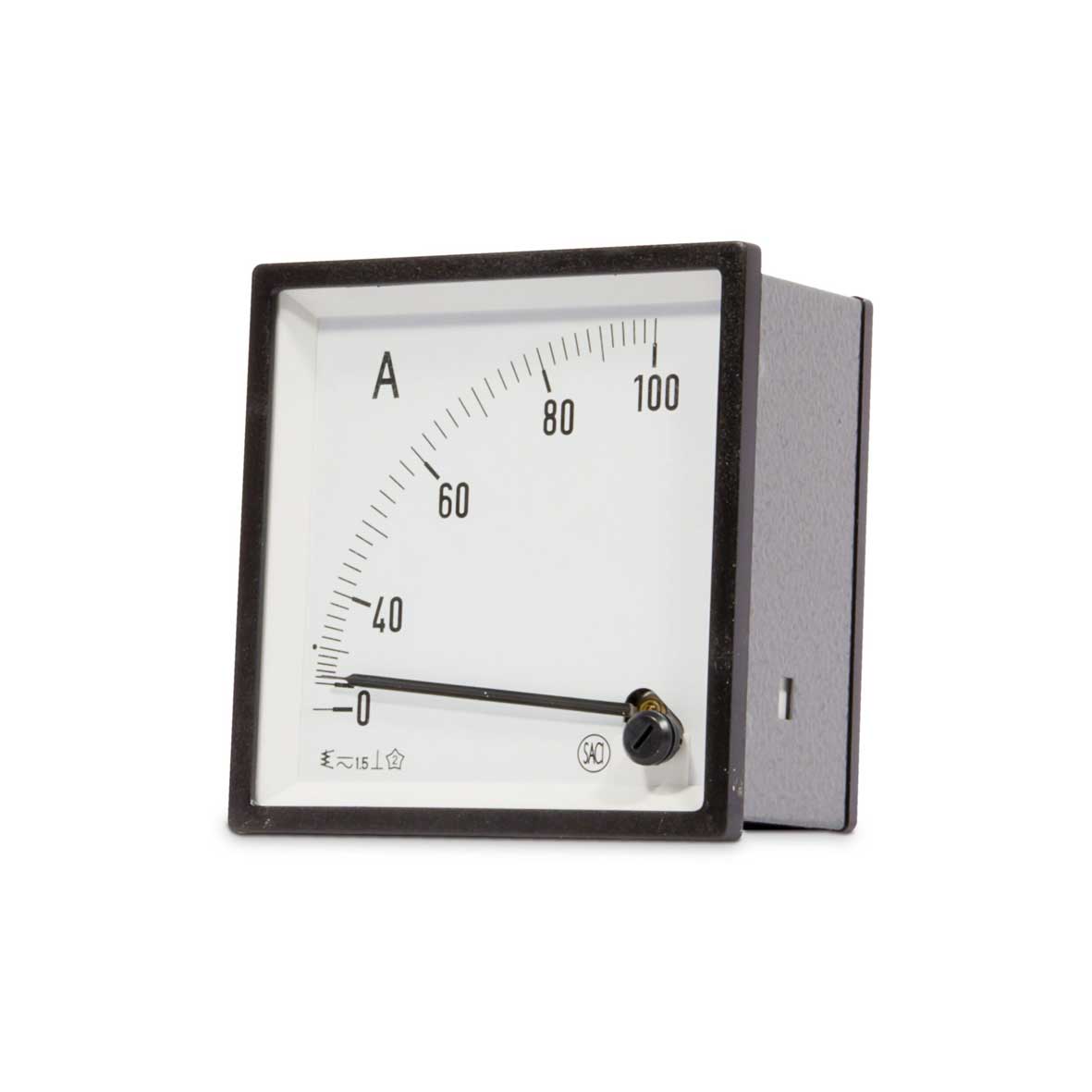

    Scale 90º Lateral
    CC5VG - 48x48mm - 0,14kg
    CC4VG - 72x72mm - 0,2kg
    CC3VG - 96x96mm - 0,28kg
    CC2VG - 144x144mm - 0,5kg

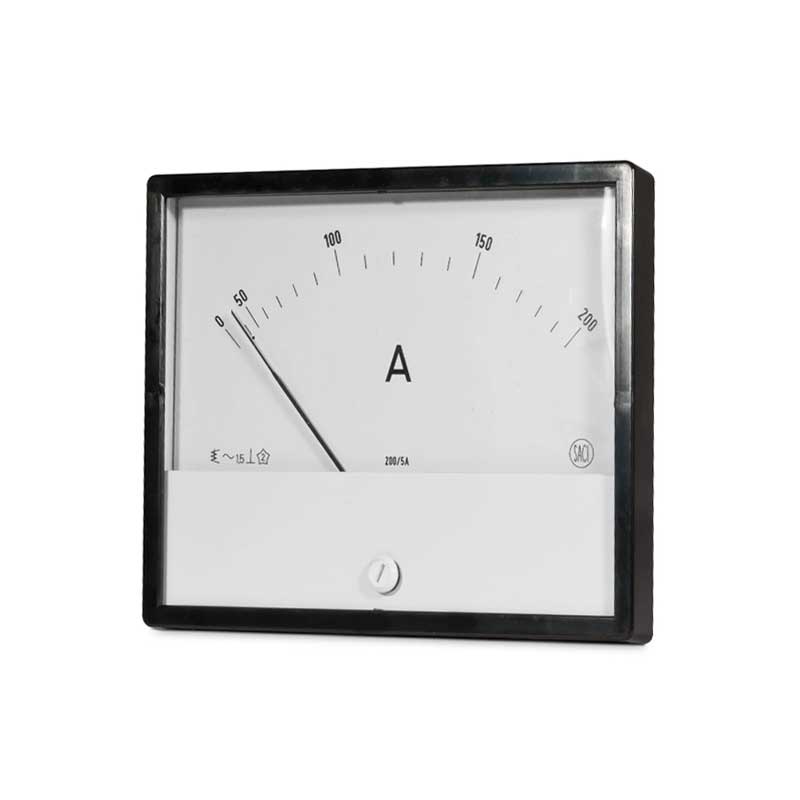

    Scale 90º central
    CCb7G - 80x64mm - 0,15kg
    CCb3G - 105x80mm - 0,19kg
    CCb8G - 130x100mm - 0,25kg

    Scale 240º.
    CC5CG - 48x48mm - 0,20kg
    CC4CG - 72x72mm - 0,32kg
    CC3CG - 96x96mm - 0,38kg
    CC2CG - 144x144mm - 0,68kg

    Frequency: 50 or 60 Hz
    Accuracy: 1,5 %
    DIN rail and scale

    AMPERIMETERS (μA, mA and A) Scale 90º and 240º.
    Measuring range (ln): 40; 50; 60; 100, 150; 250; 300; 400; 500 or 600 µA
    Measuring range (ln): 1; 1.5; 2; 2.5; 3; 4; 5; 6; 10; 15; 20; 25; 40; 50; 60; 100; 150; 250; 300; 400; 500 or 600 mA
    Measuring range (ln): 1; 1.5; 2; 2.5; 3; 4 or 5 A
    Measuring range (ln): x/5A; x/1A

    RATIO AMPERIMETERS (240º scale only)
    Modulus (ln): X/5A or X/1 A
    Standard scales (ln): 10; 15; 20; 25; 30; 40; 50; 60 or 75A and multiples thereof
    Module (2ln): 2X/5A or 2X/1 A
    Standard scales (2ln): 10..20; 15..30; 20..40; 25..50 30..60; 40..80; 50..100; 60..120 or 75..150 A and multiples thereof
    Module (5ln): 5X/5A or 5X/1 A
    Standard scales (5ln): 10..50; 15..75; 20..100; 25..125; 30..150; 40..200; 50..250; 60..300 or 75..375A and multiples
