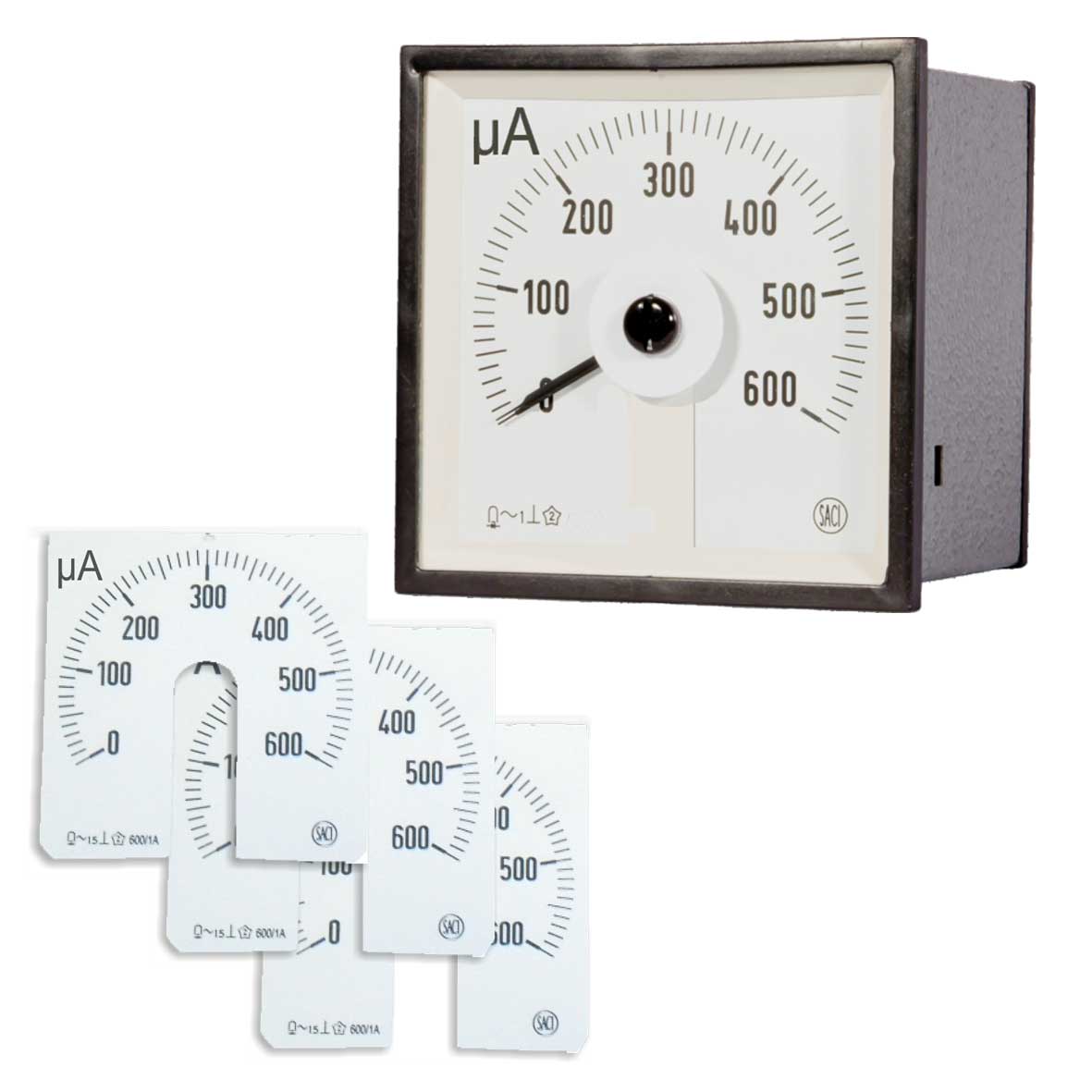

Amperímetros (µA, mA y A) - CC - Esc. Intercamb.

Ammeters (µA, mA and A) - DC - Esc.

Current measurement in direct current circuits. Panel mounting. Scale 240º. Interchangeable scale.

Current measurement in direct current circuits. Panel mounting. Scale 240º. Interchangeable scale.


    BASIC DATA PROTECTION INFORMATION: Data controller: SOCIEDAD ANÓNIMA DE CONSTRUCCIONES INDUSTRIALES Purpose of processing: To manage the queries made and to send newsletters, commercial communications and promotions. Legitimisation of the processing: Legitimate interest and consent of the data subject. Retention of data: Data will be kept for as long as there is a mutual interest or for the time necessary to comply with legal obligations. Recipients: Service providers or collaborators. Rights: Right to withdraw consent at any time. Right of access, rectification, portability and deletion of your data and the right to limit or oppose its processing. Contact details for exercising your rights: info@saci.es Additional information: You can consult additional information in our Privacy Policy.

    Technical specifications
    Certificate

    Technical details

    • Technical characteristics
    • Technical data

    Scale 240º.
    CC3CS - 96x96mm - 0,38kg

    -Scale: 240º -Scale: 240º -Scale: 240º -Scale: 240º -Scale: 240º
    -Accuracy: 1,5 %
    AMPERIMETERS (µA, mA, A)
    Measuring range (ln): 150; 200; 300; 400; 500 or 600 µA
    Measuring range (ln): 1, 1.5; 2.5; 2.5; 4; 5; 6; 10; 15; 20; 25; 40; 50; 50; 60; 100; 150; 250; 300; 400; 500; 600 mA or 4-20 mA
    Measuring range (ln): 1; 1.5; 2.5; 4; 5; 6; 10; 15 0.38 A
    AMMETERS (INTERCHANGEABLE SCALE)
    Measuring range (Vn): X/60mV or X/150mV
    Measuring range (In): 1, 1.5; 2.5; 2.5; 4; 5; 6; 10; 15; 20; 25; 30; 40; 50; 50; 60; 80 or 100A and multiples thereof
